Auswechselbare Einsätze für mitlaufende Zentrierspitzen, Größe 104, 75°

Auswechselbare Einsätze für mitlaufende Zentrierspitzen, Größe 104, 75°

Auswechselbare Einsätze für mitlaufende Zentrierspitzen, Größe 104, 75°
Item no: 1024211 102

Online price:

Available in 8-10 working days.

Application
For counter-clamping workpieces on lathes and grinding machines

Execution
  • Hardened and ground inserts
  • Concentricity deviation: 0.01 mm-0.015 mm
  • Tip angle: 75°

Advantage
Quickly change the interchangeable inserts

Notes
Accessories for synchronously running centring point, art. no. 1024207

Brand: RÖHM
Type (Passend zu Art.-Nr.): 1024207 102

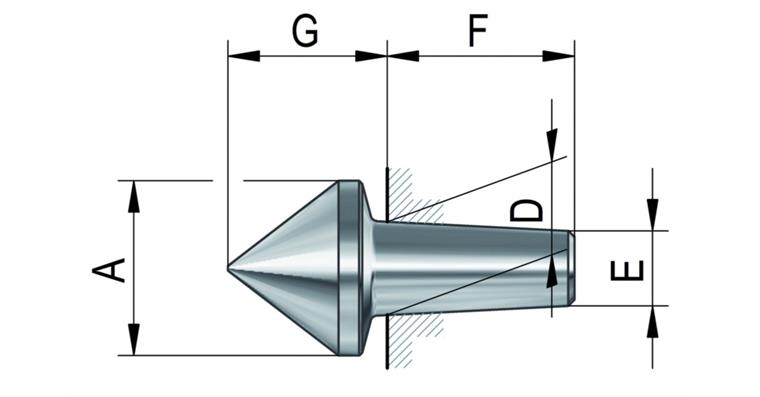

Tip diameter (Spitzen-Ø A): 20 mm
Insertion diameter (Einsteck-Ø D): 12 mm
Length of tip (Spitzenlänge G): 19,5 mm
Shaft length (Schftlänge F): 24 mm
Diameter (Min.-Ø E): 9,6 mm

Manufacturer part no.: 70729

EAN no.: 4019208017846

Product Datasheet
