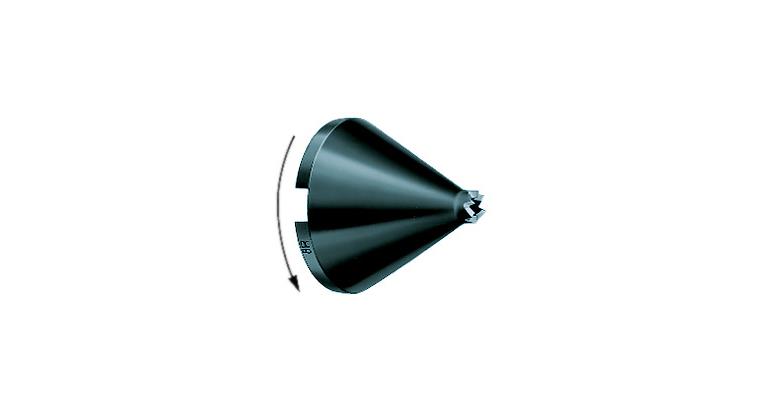

Driving plate for face driver type CoAE clamping dia. 20 mm right

Driving plate for face driver type CoAE clamping dia. 20 mm right

Driving plate for face driver type CoAE clamping dia. 20 mm right
Item no: 1025235 105

Online price:

Only while stocks last: 2

Application
For driving cylindrical components.

Execution
Driving disc, directly toothed

Notes
Driving discs with interchangeable carbide driving plates on request.

Brand: RÖHM
Clamping circuit diameter (Spannkreis-Ø S): 20 mm
Min./max. turning range diameter (Drehbereichs-Ø min./max.): 21-40 mm
Bore diameter (Bohrungs-Ø I): 13 mm
Suitable tip diameter (Für Spitzen-Ø Y): 12 mm
Length (Körperlänge R): 30 mm
Section, length (Absatzlänge V): 4 mm
Direction of rotation: Clockwise rotation
Load force in a horizontal position: 8000 N
Max. turning range diameter: 40 mm
Min. turning range diameter: 21 mm

Manufacturer part no.: 88065

EAN no.: 4019208019826

Product Datasheet
