Application
For clamping workpieces on lathes.
For successful use in areas that require high clamping force,
high concentricity and excellent repeat clamping accuracy.

Execution

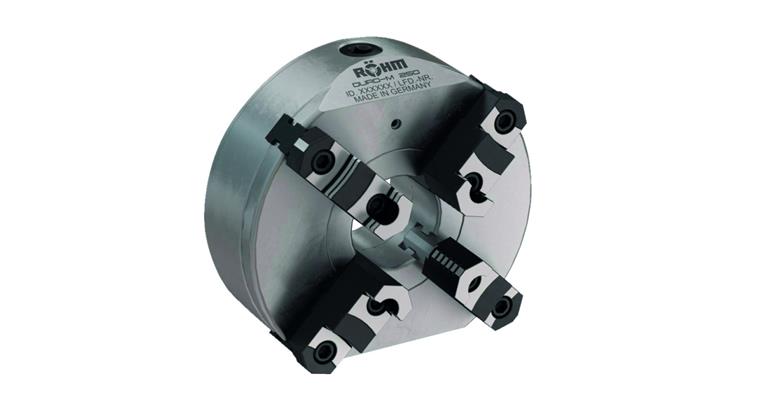

• Spiral ring chuck made of steel alloy
• Steel body
• For short tapered bayonet fastening, DIN ISO 702-3 (DIN 55027)
• Centric clamping
• Für Kurzkegel nach DIN ISO 702-3 (DIN 55027)
• Werkseitig ermittelter Nulltrieb als Genauigkeitstrieb

Advantage

• Workpieces with different clamping diameters can be clamped very quickly and without repositioning the jaws.
• Minimale Störkontur
• Hohe Kraftübersetzung
• Abtropfkante für Kühlmitte
• Kontrollrand

Delivery
With 1 set of drilling jaws (mounted in chuck), 1 set of turning jaws, 1 spanner, 1 set of stud bolts and collar nuts.
Both of the supplied jaw sets are ground in position to ensure concentricity.

Notes
Chucks with different diameters and other short taper adapters on request.
