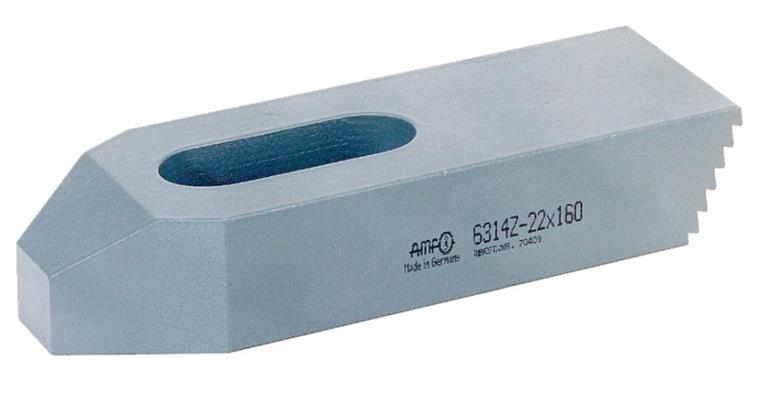

Clamp with stepped teeth slot width 22 mm L=160 mm

Clamp with stepped teeth slot width 22 mm L=160 mm

Clamp with stepped teeth slot width 22 mm L=160 mm
Item no: 1027103 106

Online price:

Available in 6-8 working days.

Execution
  • With stepped teeth
  • Heat-treated steel, painted

Notes
Only suitable for toothed clamping supports, art. no. 1027124 and 1027125.

Brand: AMF
Slot width (b1): 22 mm
Length (l1): 160 mm
Suitable for screw: M22 | M20
Clamping shoe height (a): 30 mm
Clamping shoe width (b2): 60 mm
Width 3 (b3): 22 mm
Distance (e1): 30 mm
Slot length (e2): 60 mm
DIN: 6314

Manufacturer part no.: 7040

EAN no.: 4020772070403

Product Datasheet
