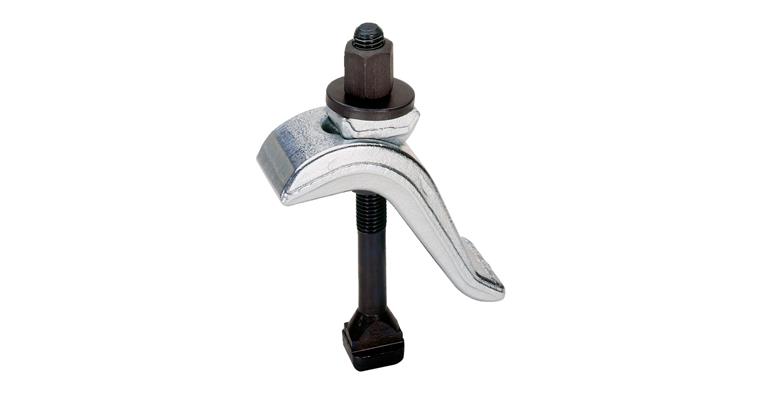

Adjustable clamp infinitely adjustable groove nom. size 12 clamp. height 0-50 mm

Adjustable clamp infinitely adjustable groove nom. size 12 clamp. height 0-50 mm

Adjustable clamp infinitely adjustable groove nom. size 12 clamp. height 0-50 mm
Item no: 1027111 101

Online price:

Available in 6-8 working days.

Application
It is designed to withstand extremely high loads and is particularly suitable for clamping cutting and punching tools.

Execution
  • Infinitely adjustable
  • Steel, forged and tempered, zinc-plated

Advantage
The infinitely variable adjustable clamp quickly spans various clamping heights without any additional support and requires little space on the machine table

Delivery
Complete with DIN 787 screw for T-groove, hexagon nut to DIN 6330B, washer to DIN 6340 and U-piece.

Notes
For detent clamp levers, see art. no. 1027117.

Brand: AMF
Nominal dimension of groove: 12 mm
Bore diameter (B1): 17 mm
Min./max. clamping height (H1): 0-50 mm
Clamping shoe width (B2): 50 mm
Clamping shoe length (L): 140 mm

Manufacturer part no.: 74906

EAN no.: 4020772074906

Product Datasheet
