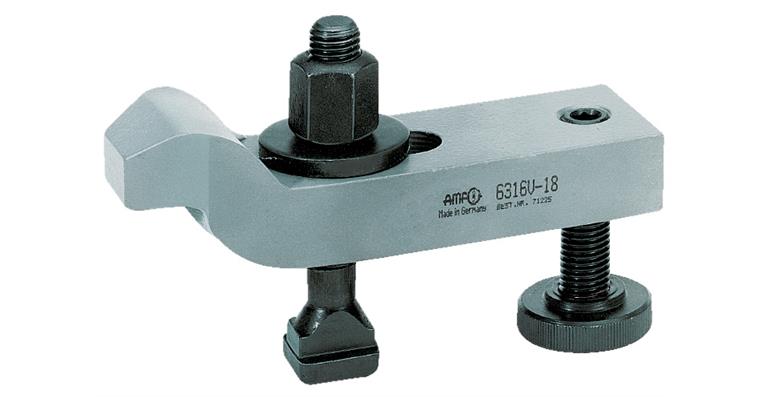

Clamp, offset with adjustable support screw, nominal groove size 16 mm

Clamp, offset with adjustable support screw, nominal groove size 16 mm

Clamp, offset with adjustable support screw, nominal groove size 16 mm
Item no: 1027116 104

Online price:

Available in 6-8 working days.

Execution
  • Depressed centre
  • Heat-treated steel, painted

Delivery
Complete with DIN 787 screw for T-groove, hexagon nut to DIN 6330B and washer to DIN 6340.

Notes
Clamping range H dependent on groove depth to DIN 650, and screw-in length of the nut. For detent clamp levers, see art. no. 1027117.

Brand: AMF
Nominal dimension of groove: 16 mm
Suitable screw DIN 787: M16 x 125 mm
Min./max. clamping height (H): 36-71 mm
Slot width (B1): 18 mm
Length (L): 160 mm
Thread diameter x thread length (D x LS): 16 x 55 mm
Clamping shoe height (A): 25 mm
Clamping shoe width (B2): 50 mm
Distance (E1): 51,5 mm
Slot length (E2): 50 mm
Max. clamping height: 71 mm
Min. clamping height: 36 mm
Thread diameter: 16 mm
Thread length: 55 mm

Manufacturer part no.: 71308

EAN no.: 4020772071301

Product Datasheet
