Horizontal quick-action clamp horizontal base zinc-plated size 3

Horizontal quick-action clamp horizontal base zinc-plated size 3

Horizontal quick-action clamp horizontal base zinc-plated size 3
Item no: 1027317 104

Online price:

Available for immediate delivery

Application
For quick clamping of workpieces.

Execution
  • Zinc-plated and passivated
  • Stainless steel rivets running in case-hardened bearing bushes for sizes 2 to 5
  • Bearing points greased
  • Ergonomic, oil-resistant handle with large hand rest and soft component
  • Retainer for the pressure screw at the end of the clamping arm
  • Complete with tempered, zinc-plated pressure screw

Notes
For cross arms, see art. no. 1027345. Also deliverable in "STAINLESS STEEL rust-proof" and matt black finish.

Brand: AMF
Size: 3
Width (B): 73 mm
Retaining force (F1): 1,8 kN
Max. tensile force (F2): 2,5 kN
Clamping height (H): 32 mm
Height (H1): 48,5 mm
Height 2 (H2): 86 mm
Length, clamped (L1): 206 mm
Angle (Alpha): 90 Degree
Thumbscrew size (Andrückschraube): M8 x 45 mm
Hole distance 2 (C): 25,7 mm
Bore diameter (D): 6,5 mm
Bore diameter 1 (D1): 5,1 mm
Hole distance 4 (K): 7 mm
Hole distance 3 (L): 13 mm
Min./max. hole distance (M min./max.): 22-31.8 mm
Hole distance 1 (M1): 31,6 mm
Plate width (N): 45,5 mm
Plate length (P): 50 mm
Weight: 320 g

Manufacturer part no.: 6830-3

EAN no.: 4020772093037

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE-PM TiCN C 371 30° M4 0.7 mm ISO2 S 2.0xD CNC S
  •
    ATORN screw tap HSSE-PM ULTRA HL C 376 50° M24 3 ISO2 2.5xD CNC UNI
  •
    Blind hole screw tap UNC DIN 376 40° shape B 2.5xD HSS-E 1/2 inch
  •
    ATORN reducing sleeve dia. 20 mm/dia. 3 mm for IC
  •
    Horizontal quick-action clamp horizontal base zinc-plated size 2
    28,94 €
  • Horizontal quick-action clamp horizontal base zinc-plated size 5
    72,85 €
  • Precision 3-pt internal micrometer, self-adj. meas. depth 520 mm MR 900-1150 mm
  •

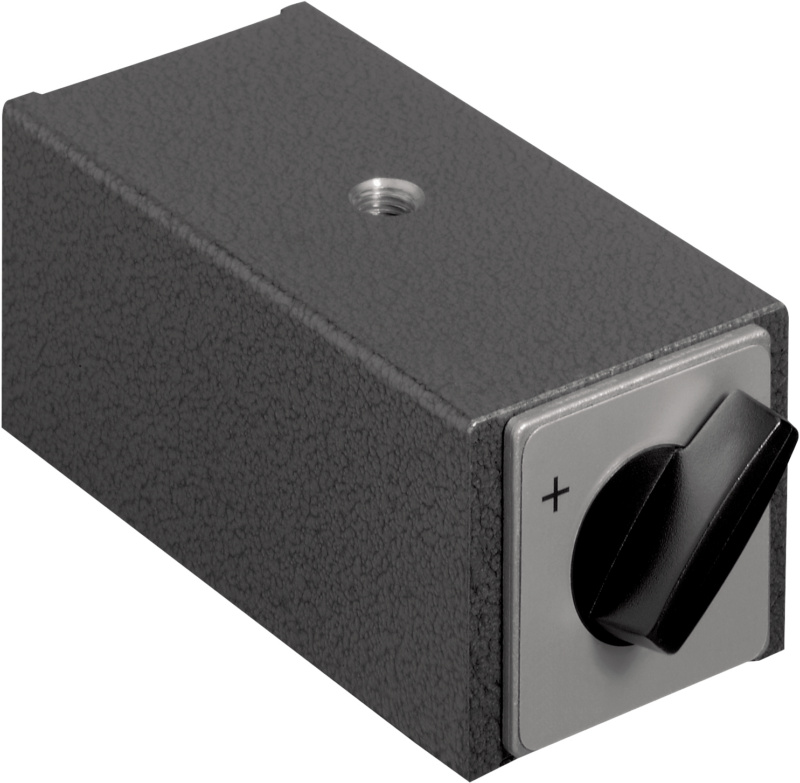

    ATORN adhesive magnet 120 x 60 x 55 mm adhesive force 1500 N
