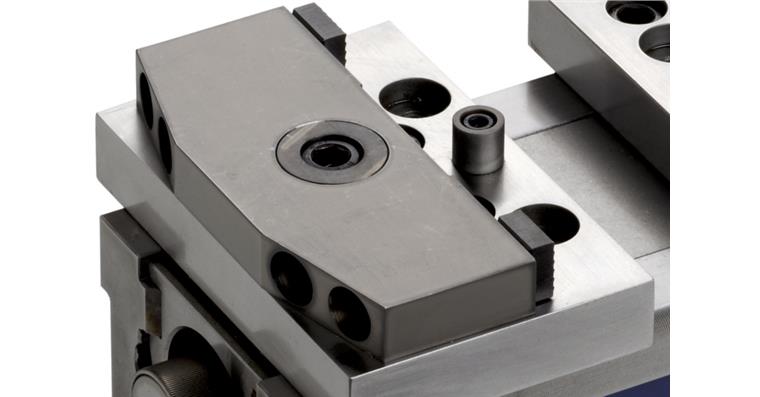

ATORN pendulum jaw for screwing on to grip jaws

ATORN pendulum jaw for screwing on to grip jaws

1027590301 ATORN pendulum jaw for screwing on to grip jaws
Item no: 1027590 301

Online price:

Available in 4-6 working days.

Application
For clamping non-parallel workpieces, cast parts and moulded workpieces.

Execution
  • Hardened and polished pendulum jaw with grip inserts
  • With two fixed carbide grip inserts

Advantage
Compensation of saw cuts; moulded and cast parts without two parallel sides

Delivery
1x pendulum jaw with 2x carbide grip inserts

Notes
For mounting on movable multi jaw

Brand: ATORN
Type: Pendulum jaw with gripper inserts
Jaws width: 156 mm
Jaws thickness: 62 mm
Jaws height: 20 mm
Min./max. clamping width: 6-168 mm

ATORN-No.: 21880052

EAN no.: 4050293193107

Product Datasheet
