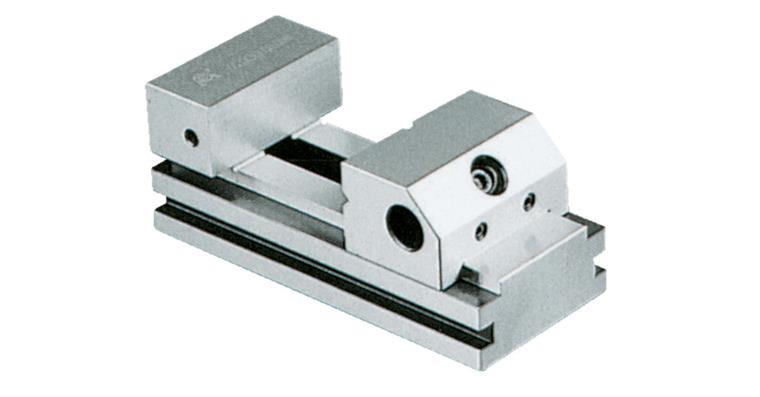

Grinding and control vice, clamping width 0-120 mm with quick adjustment

Grinding and control vice, clamping width 0-120 mm with quick adjustment

Grinding and control vice, clamping width 0-120 mm with quick adjustment
Item no: 1027620 104

Online price:

Available in 8-10 working days.

Application
For highly accurate machining of workpieces (sanding, drilling, milling, measuring) on all precision machines.

Execution
  • With quick adjustment (no spindle)
  • The movable jaw is pushed towards the workpiece on the V-guide and clamped by a screw
  • Surface precision-ground

Advantage
The precision-angled design allows the machining of workpieces from 4 sides


Brand: RÖHM
Jaws width: 90 mm
Min./max. clamping width 2 (Spannweite): 0-120 mm
Jaws height: 40 mm
Base body width: 90 mm
Base body length: 210 mm
Height 2 (Höhe C): 80 mm
Alignment tolerance: 0.002/100 mm
Perpendicularity deviation: 0,002 mm
Prism countersunk horizontally and vertically: Yes
Material: Tool steel
Design: Hardened
Rockwell hardness, HRC: 60 HRC
Weight: 8,3 kg

Manufacturer part no.: MODELL VS-90

EAN no.: 4019208228259

Product Datasheet
