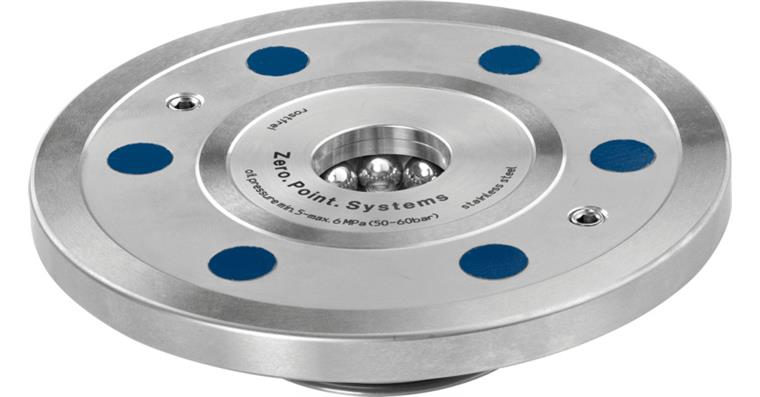

ATORN mounting clamp module type K 10.2 zero-point clamp system diameter 112 mm

ATORN mounting clamp module type K 10.2 zero-point clamp system diameter 112 mm

ATORN mounting clamp module type K 10.2 zero-point clamp system diameter 112 mm
Item no: 1027830 201

Online price:

Available in 6-8 working days.

Application
Zero-point clamping system for set-up-time-optimised clamping with chipping and chipless machining in all areas, such as in the food, pharmaceuticals and chemicals industry.

Execution
  • Hydraulic unlocking
  • Lid and piston hardened
  • Repeat accuracy < 0.005 mm

Delivery
1x clamping module

Notes
The built-in clamping modules have high retention, feeding and locking forces with very small installation dimensions. hydraulic pressure is only required for loosening (min. 50 bar/max. 60 bar). The modules are mechanically locked in a clamped state. The advantage here is no disturbing lines and no risk of leakage. Available on request: - Installation sketches - Automation solutions - Also available as individual flange version

Brand: ATORN
Type: K10.2
Model: without indexing
For tensioning station: K10.2 / 2-fold | K10.2 / 4-fold | K10.2 / 6-fold
Width 2: 8 mm
Thickness: 22 mm
Thickness 2: 8 mm
Height: 30 mm
Depth: 22 mm
Diameter: 112 mm
Adapter diameter: 50 mm
Locating bore hole diameter: 22 mm
Pitch circle diameter: 77 mm
Retraction force/closing force: 10 kN
Retaining force: 25 kN
Thread dimension: M5
Weight: 0,6 kg

ATORN-No.: 21710211

EAN no.: 4050293319439

Product Datasheet
