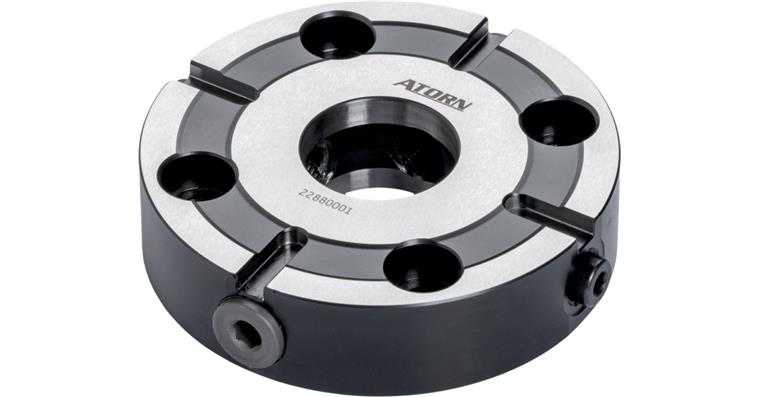

ATORN Easy Point basic system with one clamping pot, diameter 32 mm

ATORN Easy Point basic system with one clamping pot, diameter 32 mm

ATORN Easy Point basic system with one clamping pot, diameter 32 mm
Item no: 1027860 101

Online price:

Available in 4-6 working days.

Application
Minimise setup times with the mechanical ATORN Easy Point zero-point clamping system. Quick and easy changeover of clamping devices, whether manual or automated.

Execution
  • This safety lock feature has been specially developed for the Easy Point to mechanically and reliably secure clamping equipment and workpieces on the machine table. The safety lock does not open in the event of overloading
  • A low crash risk minimises the risk of injury, prevents damage to the workpiece, tool and machine and ensures precise work
  • Repeat accuracy < 0.005 mm

Advantage
  • Minimal tilting, user-friendly and highly accurate
  • A hole in the exact centre of the system enables the centre point to be established quickly and precisely
  • A clamping force of up to 50 tonnes can be achieved with just 60 Nm
  • Wide and solid clamping surfaces provide stability and reduce vibrations

Delivery
1x basic clamping system


Brand: ATORN
Height: 32 mm
Diameter: 130 mm

ATORN-No.: 22880001

EAN no.: 4066107007621

Product Datasheet
