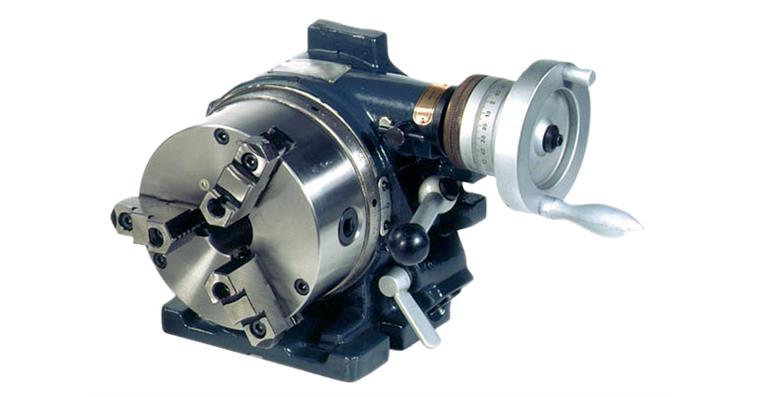

Horizontal-vertical index unit HRTU165 with 3-jaw chuck, chuck diameter 165 mm

Horizontal-vertical index unit HRTU165 with 3-jaw chuck, chuck diameter 165 mm

Horizontal-vertical index unit HRTU165 with 3-jaw chuck, chuck diameter 165 mm
Item no: 1029004 101

Online price:

Available in 13-15 working days.

Execution
  • With three-jaw chuck
  • Rotary indexing table made of high-quality Meehanite cast iron, reliable and precise with precision tapered roller bearings
  • Large spindle opening, for clamping longer workpieces
  • Indexing in degrees using 360° scale with crank and vernier scale
  • Direct indexing by means of a locking disc for higher speeds of mass-produced parts
  • 24 positions (15° pitch)
  • 7 locking discs for 2, 3, 4, 6, 8, 12 and 24-x pitches
  • Includes clamping disc with 3 grooves


Brand: ---
Point height: 130 mm
Indexing part height (Teilapparathöhe C): 221 mm
Lathe chuck diameter (Drehfutterdurchmesser D): 165 mm
Clearance hole (Durchgangsbohrung d): 36 mm
Width (Breite H): 250 mm
Length (Länge L): 235 mm
Weight: 48 kg

EAN no.: 4024496070770

Product Datasheet
