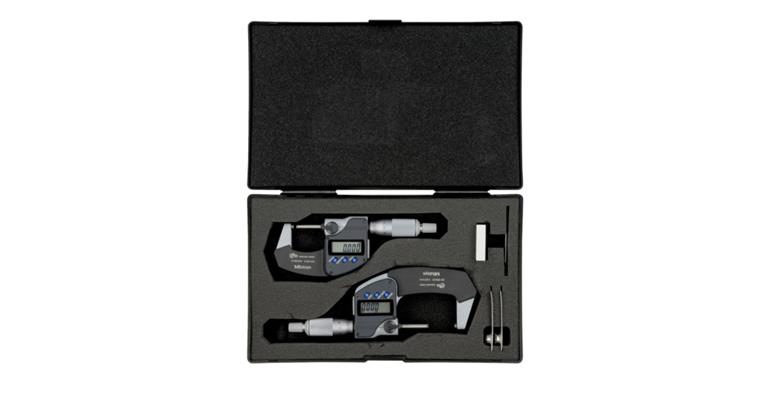

Digitale Bügelmessschraube-Satz 0 - 50 mm Serie 293

Digitale Bügelmessschraube-Satz 0 - 50 mm Serie 293

Digitale Bügelmessschraube-Satz 0 - 50 mm Serie 293
Item no: 1031016 801

Online price:

Available in 11-13 working days.

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • Carbide-tipped and micro-lapped measuring surfaces
  • Semi-gloss chrome-plated thimble and sleeve, dia. 18 mm
  • A ratchet tool ensures reproducible measurements
  • Oil-resistant material for all plastic parts
  • Funktionen: ORIGIN, ABS/INC (INC ZERO), Automatische Abschaltung nach 20 Min. ohne Funktion, Alarm niedrige Spannung, Funktionssperre, Hold
  • Functions: ORIGIN (up to 100 mm), ABS/INC (INC ZERO), automatic power off after 20 mins of inactivity, low voltage alarm, function block, hold

Delivery
1x box
1x key
Battery (type SR-44)
Setting standard (from 25 mm)
Factory test certificate (up to 50 mm measuring range)


Brand: MITUTOYO
Min./max. length measuring range: 0-50 mm
Digit increment: 0,001 mm
Number of bracket measuring screws: 2 PCS
Composition of set: 0-25 mm | 25-50 mm | Einstellmaße
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,35 mm
Min./max. measurement force: 5-10 N
Spindle clamping: Yes
Digit height: 7,5 mm
IP protection class: IP 65
Data transmission type: Cable | Bluetooth | Wireless
Interface: Digimatic | USB 2.0 type A | Bluetooth | Integrated Wireless
Other standard: Company standard
Number of setting dimensions: 1 PCS
Calibration Group: D | E
Battery designation: 1,5 V SR44

Manufacturer part no.: 293-966-30

EAN no.: 4946368673226

Product Datasheet
