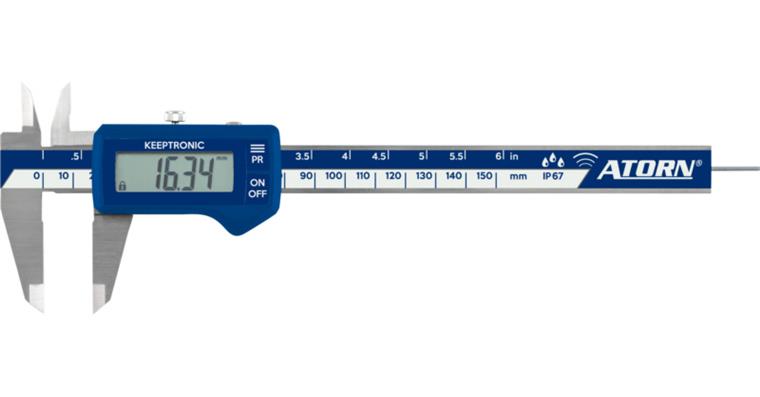

ATORN callipers, IP67, electronic, 150 mm, wireless depth gauge, round

ATORN callipers, IP67, electronic, 150 mm, wireless depth gauge, round

ATORN callipers, IP67, electronic, 150 mm, wireless depth gauge, round
Item no: 1031034 403

Online price:

Still in stock: 8

Application
For measuring external, internal, step and depth dimensions.

Execution
  • ON/OFF
  • Zero setting at any position
  • mm/inch changeover
  • AUTO OFF
  • ABS function
  • Protection rating: IP67
  • Integrated wireless transmission
  • Keeptronic system
  • High-contrast display

Advantage
  • key lock to prevent unintentional adjustment
  • Simple and reliable measurement reading thanks to large and high-contrast display
  • Switched on using the ON button or automatically switched on by calliper movement
  • Unrestricted freedom of movement (radio range up to 6 m)

Delivery
In a case, with battery (1 x 3 V lithium, type CR 2032)

Notes
Wireless receiver, see art. no. 1035200 410.

Brand: ATORN
Min./max. length measuring range: 0-150 mm
Data transmission type: Wireless
Depth gauge rod: Round
IP protection class: IP 67
Length of jaw: 40 mm
Digit height: 11 mm
Length of cross tips: 16 mm
Digit increment: 0,01 mm
Depth gauge rod thickness: 1,5 mm
Type of locating: With locking screw
Number of rechargeable batteries/batteries: 1 PCS
Battery designation: 3V CR2032 Lithium
Calibration Group: A
ISO: 13385-1
Functions: Hold-function (AE lock) | Preset function | Reversal of counting direction | With mm / inch switching | Lock-function (Keybord lock) | On/Off | Automatic switch-on (movement of the slide/measuring bolt) | With zero setting at any position

ATORN-No.: 30403037

EAN no.: 4050293668575
