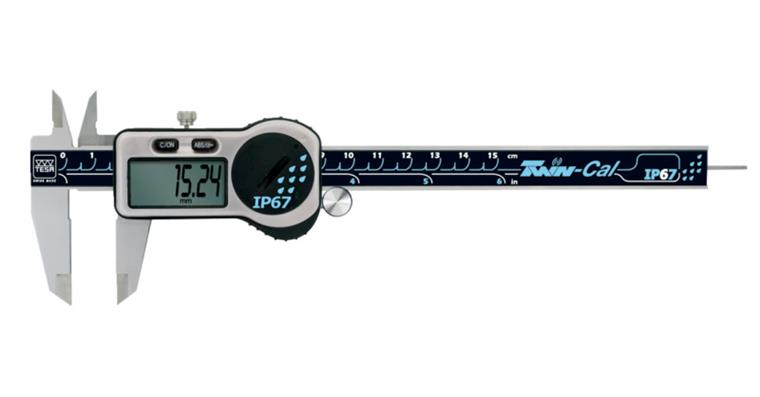

TWIN-CAL IP67 digital pocket vernier callipers 0-150 mm with data output

Versions

Item no: 1031050 102

Online price:

Catalogue price: You save:

Available for immediate delivery

Min. order quantity: 1

Application
For measuring external, internal, step and depth dimensions.

Execution

Perfect guidance of the slide for easy and smooth operation
Robust construction for durability and long-term reliability of results
Locking screw at the top
Auto OFF
Fonction ABS
Functions: Sleep mode after 10 min, ABS or DIFF mode, low battery indicator, mm/inch

Advantage

Comfortable to use with "soft touch" coating
High degree of protection against dust and liquids
IP protection even with data transfer cable connected

Delivery
1x 3 V battery (type CR 2032)
1x measurement report
1x declaration of conformity

Notes
For test gauge, see art. no. 1032060 201.
For connection cable, see art. no. 1035200 315, 316.
For wireless data transmission, see art. no. 1035200 501-503.
For replacement batteries, see art. no. 1039900 102.

Brand: TESA TECHNOLOGY
Min./max. length measuring range: 0-150 mm
Digit increment: 0,01 mm
Depth gauge rod: Round
Length of jaw: 40 mm
Data transmission type: Bluetooth | Cable
Error limit: 0,03 mm
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-6 in
IP protection class: IP 67
Interface: Bluetooth | Digimatic | USB 2.0 type A
With drive wheel: No
ISO: 13385-1
Material: Steel, stainless
Calibration Group: A
Length of cross tips: 16 mm
Depth gauge rod thickness: 1,5 mm
Digit height: 11 mm
Type of locating: With locking screw

Manufacturer part no.: 00530320

EAN no.: 7630041106299
