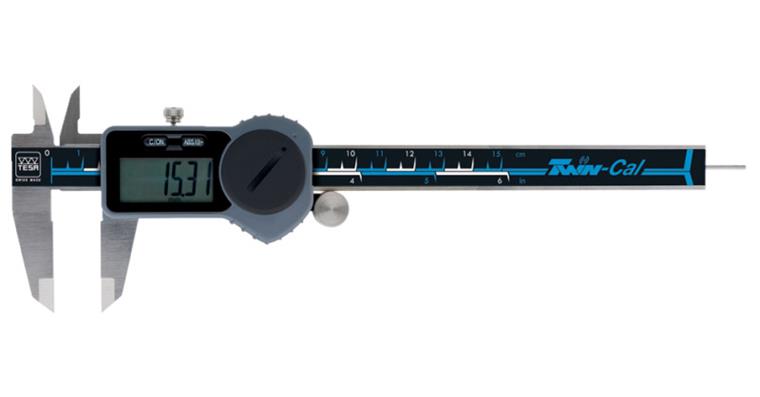

TWIN-CAL IP40 digital pocket vernier callipers 0-150mm data outp. a. drive wheel

TWIN-CAL IP40 digital pocket vernier callipers 0-150mm data outp. a. drive wheel

TWIN-CAL IP40 digital pocket vernier callipers 0-150mm data outp. a. drive wheel
Item no: 1031051 102

Online price:

Available for immediate delivery

Application
For measuring external, internal, step and depth dimensions.

Execution
  • Perfect guidance of the slide for easy and smooth operation
  • Robust construction for durability and long-term reliability of results
  • Locking screw at the top
  • Funktionen: Ruhemodus nach 10 min, ABS- oder DIFF-Modus, Anzeige bei schwacher Batterie, mm/inch, Datenübertragung
  • Functions: Sleep mode after 10 min, ABS or DIFF mode, low battery indicator, mm/inch, data transfer cable

Advantage
  • Comfortable to use with "soft touch" coating
  • High degree of protection against dust and liquids
  • IP protection even with data transfer cable connected

Delivery
1x 3 V battery (type CR 2032)
1x measurement report
1x declaration of conformity

Notes
For test gauge, see art. no. 1032060 201.
For connection cable, see art. no. 1035200 315, 316.
For wireless data transmission, see art. no. 1035200 501-503.
For replacement batteries, see art. no. 1039900 102.

Brand: TESA TECHNOLOGY
Min./max. length measuring range: 0-150 mm
Digit increment: 0,01 mm
Depth gauge rod: Round
Length of jaw: 40 mm
Data transmission type: Bluetooth | Cable
Error limit: 0,03 mm
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-6 in
IP protection class: IP 40
Interface: Bluetooth | Digimatic | USB 2.0 type A
With drive wheel: Yes
ISO: 13385-1
Material: Steel, stainless
Calibration Group: A
Length of cross tips: 16 mm
Depth gauge rod thickness: 1,5 mm
Digit height: 11 mm
Type of locating: With locking screw

Manufacturer part no.: 00530094

EAN no.: 7630041106145
