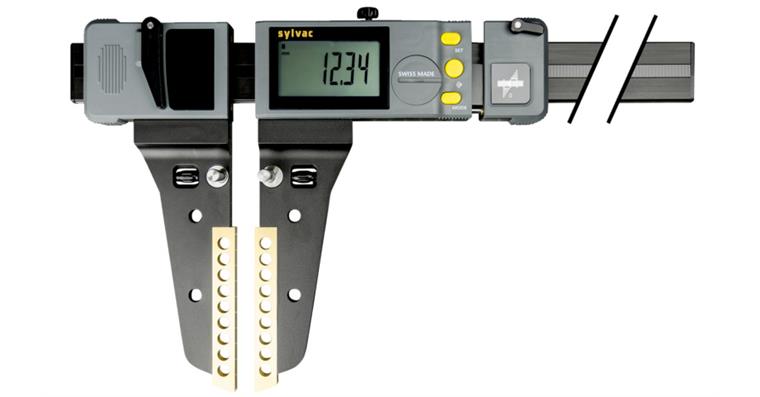

Dig. workshop callipers 0-1,545 mm, lightweight, w. data output

Dig. workshop callipers 0-1,545 mm, lightweight, w. data output

Dig. workshop callipers 0-1,545 mm, lightweight, w. data output
Item no: 1031127 303

Online price:

Available in 11-13 working days.

Application
For measuring external and internal dimensions.

Execution
  • LCD display (digit height 20 mm)
  • Carbide cylindrical probe tips for internal measurement, dia. 8 mm, length 30 mm
  • External measuring jaws 175 mm long, 8 mm thick, made of hardened steel, titanium-coated
  • Coolant-resistant steel measuring rod
  • With sliding and lockable left-hand measuring jaw
  • Functions: Preset (measurement presetting), min/max function, tolerance limit display

Advantage
  • Low weight for easier handling and increased measurement reliability
  • Constant measuring force for external and internal measurement (5-10 N)
  • The measuring rail is a hollow aluminium profile reinforced by four steel rods, hardened and ground. This ensures perfect guidance of the slide and protection of the rail against impact

Delivery
1x 3 V battery (type CR 2032)
1x adapter

Notes
For test gauge, see art. no. 1032060 201.
For connection cable, see art. no. 1035200 312-313.
For replacement batteries, see art. no. 1039900 102.
Accessories deliverable on request.

Brand: SYLVAC
Min./max. length measuring range: 0-1545 mm
Digit increment: 0,01 mm
Length of jaw: 202 mm
Fine adjustment: Yes
Data transmission type: Cable
IP protection class: IP 67
Interface: RS232 | USB 2.0 type A
Error limit: 0,09 mm
Digit height: 20 mm
Type of locating: With locking screw
ISO: 13385-1
Calibration Group: A

Manufacturer part no.: 811-1515-10

EAN no.: 7640125681352
