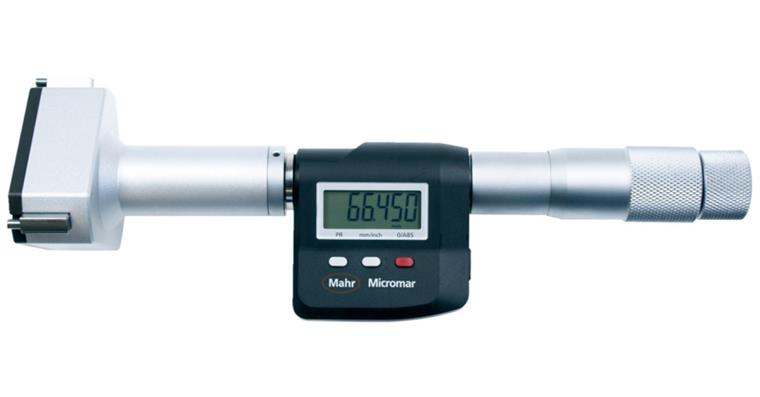

Digital 3-point internal micrometer, Micromar 44 EWR MR 60-70 mm

Digital 3-point internal micrometer, Micromar 44 EWR MR 60-70 mm

Digital 3-point internal micrometer, Micromar 44 EWR MR 60-70 mm
Item no: 1031925 111

Online price:

Available in 6-8 working days.

Application
Measurement of through-bores, blind holes and centring edges.

Execution
  • Connecting thread for changing the measuring heads
  • Self-centring measuring head with three measuring probes on the side, offset by 120°
  • Carbide-reinforced measuring probe from 12 mm
  • From 12 mm with measuring probe for measurements to the base of the hole
  • From 40 mm with weight-saving aluminium measuring head
  • Functions: RESET (setting the display zero), ABS (display can be set to zero without losing the reference to the preset), mm/inch switching, PRESET (measurement pre-setting), DATA (in conjunction with data connection cable), LOCK function (keypad lock)

Delivery
1x case
1x basic unit 44 EWg
1x measuring head 44 Ak
1x battery 3 V (type CR 2032)
1x operating instructions

Notes
For connection cables, see art. no. 1035200 404-406.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 60-70 mm
Digit increment: 0,001 mm
Measuring depth: 79 mm
Error limit: 0,005 mm
Measuring spindle increments: 0,5 mm
Data transmission type: Cable | Wireless
Interface: Digimatic | Integrated Wireless | Opto RS232 | USB 2.0 type A
IP protection class: IP 52
Digit height: 8,5 mm
Calibration Group: I
DIN: 863

Manufacturer part no.: 4191131

EAN no.: 4059192010997

Product Datasheet
