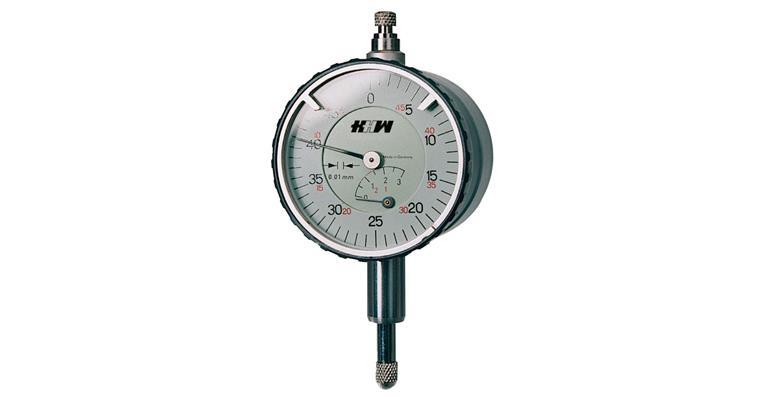

Small dial gauge with adhesive magnet reading 0.01 mm DIN 878 MR 3 mm dia. 40 mm

Small dial gauge with adhesive magnet reading 0.01 mm DIN 878 MR 3 mm dia. 40 mm

Small dial gauge with adhesive magnet reading 0.01 mm DIN 878 MR 3 mm dia. 40 mm
Item no: 1033006 101

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements

Execution
  • Nickel-plated metal housing
  • 2x pointers (small pointer for absolute mm display)
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2x adjustable tolerance marks
  • Dial with black advancing and red returning numbers
  • Replaceable indicator contact points
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Back panel designed as a holding magnet (adhesion 120 N)
  • Can be used without a holder or base

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 3 mm
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 0,5 mm
Outer diameter: 40 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Plastic
Rotating housing: Yes
Shaft length: 12,5 mm
DIN: 878
Scale value: 0,01 mm

EAN no.: 4024496080809

Product Datasheet
