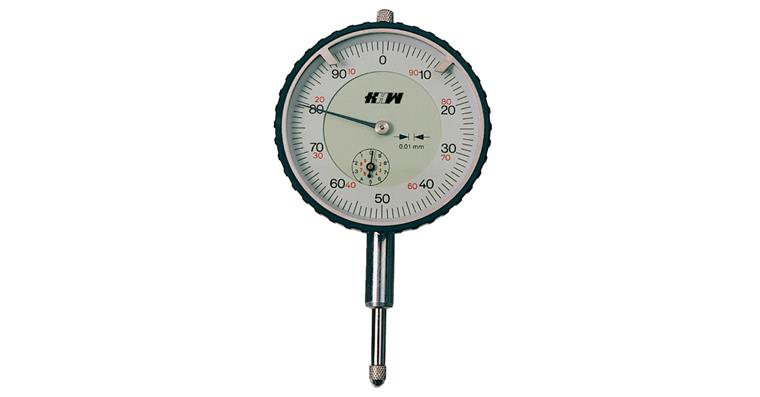

Dial gauge with adhesive magnet reading 0.01 mm MR 10 mm dia. 58 mm

Dial gauge with adhesive magnet reading 0.01 mm MR 10 mm dia. 58 mm

Dial gauge with adhesive magnet reading 0.01 mm MR 10 mm dia. 58 mm
Item no: 1033055 102

Online price:

Still in stock: 3

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2 pointers (small pointer for absolute mm display)
  • 2 adjustable tolerance marks
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Nickel-plated metal housing
  • Replaceable gauge slides
  • The back panel is designed as an adhesive magnet (adhesive capacity 220 N) and can be used without a holder or base, and neither affects the mechanism nor the accuracy
  • Dial with black advancing and red returning numbers

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 10 mm
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 58 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Plastic
Rotating housing: No
Shaft length: 17,5 mm
DIN: 878

EAN no.: 4024496080977

Product Datasheet
