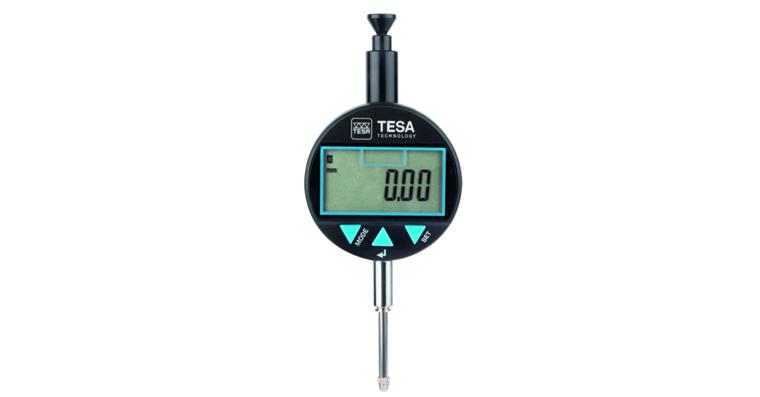

DIALTRONIC digital dial gauge, 25 mm, 0.01 mm, dia. 60 mm, IP54

DIALTRONIC digital dial gauge, 25 mm, 0.01 mm, dia. 60 mm, IP54

DIALTRONIC digital dial gauge, 25 mm, 0.01 mm, dia. 60 mm, IP54
Item no: 1033090 902

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • For static and dynamic measurements
  • Metal housing
  • Large LCD display
  • Display and function keys can be rotated by 270°
  • Functions: Switchover of counting direction, automatic standby, PRESET mode, 2 references can be stored, MAX, MIN, MAX-MIN (TIR), scale interval can be changed, multiplication factor, keypad can be blocked, memorisation of value measured, zero setting of the value, button for recalling the PRESET value, tolerance setting

Delivery
1x dial gauge with built-in ball measuring insert dia. 3 mm
Measurement report
Quick-start instructions


Brand: TESA TECHNOLOGY
Length measuring range: 25 mm
Max. length measuring range in inches: 1 in
Digit increment: 0,01 mm
Digit increment in inches: 0,0005 in
Error limit: 0,01 mm
Data transmission type: Cable
Min./max. measurement force: 0.65-1.15 N
Repeat accuracy: 0,002 mm
IP protection class: IP 54
Dynamic measurement: Yes
Shank diameter: 8 mm
Rotating housing: Yes
Calibration Group: CD
Other standard: Company standard
Outer diameter: 60 mm

Manufacturer part no.: 01930304

EAN no.: 7630041152500

Product Datasheet
