Depth gauge with dial gauge and bridge reading 0.01 mm MR 10 mm

Depth gauge with dial gauge and bridge reading 0.01 mm MR 10 mm

Depth gauge with dial gauge and bridge reading 0.01 mm MR 10 mm
Item no: 1033230 101

Online price:

Available in 6-8 working days.

Application
For checking the depths of blind holes, recesses and grooves of all kinds, e.g. measuring engravings with sharp probe (art. no. 1033114 101).

Execution
  • Complete with special dial gauge and depth measuring bridge
  • Location hole for dial gauge dia. 8 mm H 7
  • Measuring bridge burnished
  • Contact surface hardened, ground and finely lapped
  • Flatness in accordance with DIN 874/0

Delivery
In case

Notes
mit Spitztaster Art.-Nr. 1033114 101

Brand: LIZZARD
Measuring range min./max.: 0-10 mm
Digit increment: 0,01 mm
Bridge length: 80 mm
Bridge width: 16 mm
Measurement force: 1,2 N
Measuring depth: 10 mm
Bridge length x bridge width: 80 x 16 mm

EAN no.: 4024496081394

Product Datasheet
Keywords:

[Text nicht gefunden]

  • ATORN handle strip, low type, 16 mm, can be screwed onto stepped jaws
  •

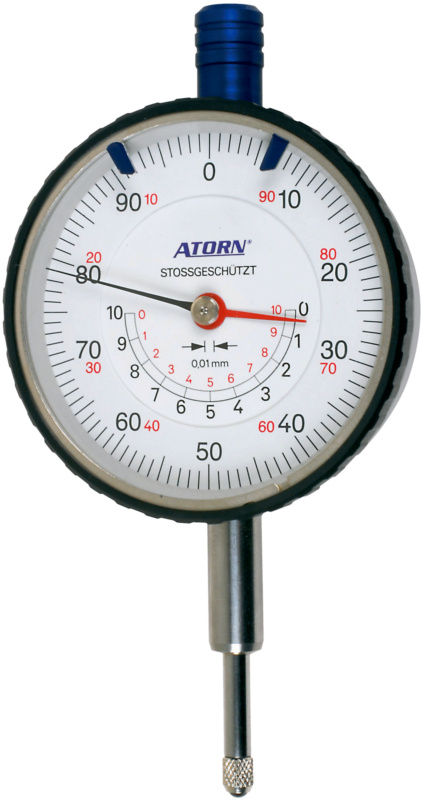

    ATORN dial gauge 10 mm meas. diff. 0.01 mm graduation with concentric mm display
  •
    Pocket tape measure POWERLOCK metal housing EC precision class II L=3 m
    11,83 €
  • TC bur, rounded shape (RBF), shank dia. 6 mm, serration ALU, head dia.xL 6x18
  •
    1/4 inch internal TX® screwdriver bit vanadium special steel T 20
  •
    3/8 inch screwdriver bit vanadium special steel Phillips PH 2
    14,77 €
  • Number and letter punch set of 100 types Cr-Mo special steel 2.5 mm
  •

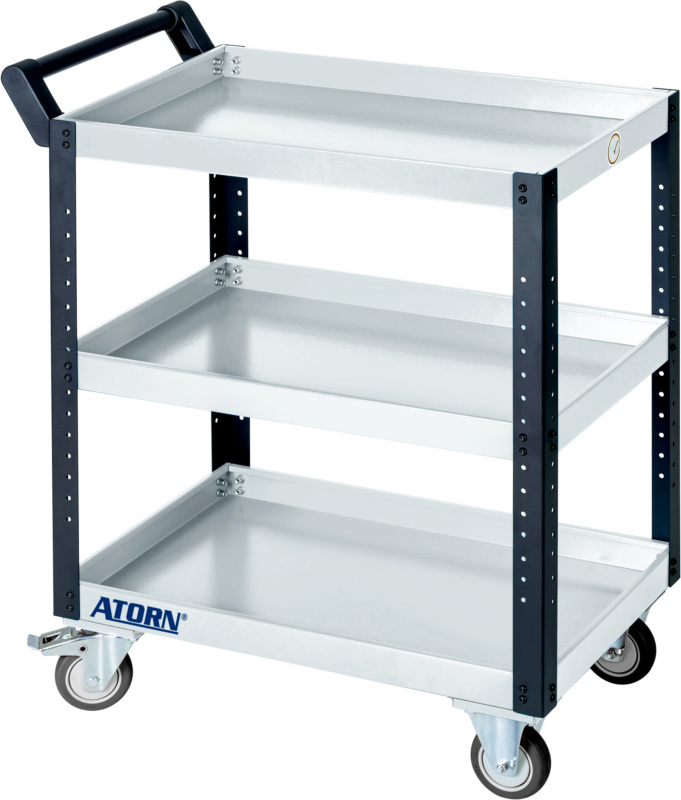

    ATORN service trolley with 3 shelves, 890x542x845 mm, load capacity 150 kg
