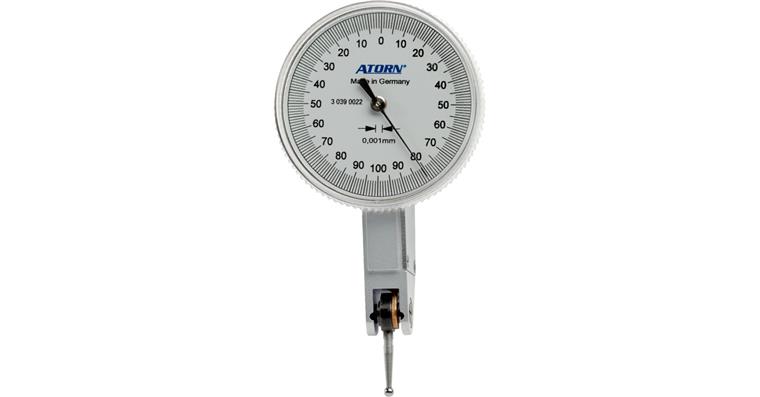

ATORN lever gauge probe, 0.001 mm scale 0.2 mm measuring range, 40 mm

ATORN lever gauge probe, 0.001 mm scale 0.2 mm measuring range, 40 mm

ATORN lever gauge probe, 0.001 mm scale 0.2 mm measuring range, 40 mm
Item no: 1033245 101

Online price:

Availability on demand

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts of boreholes and aligning workpieces.

Execution
  • metallic outer ring
  • Anti-magnetic components
  • Automatic switching of callipers direction
  • Measuring mechanism on ruby bearings
  • 3 dovetail mounting surfaces

Delivery
Lever gauge probe, measuring probe with 2 mm diameter cemented carbide ball, 8 mm diameter clamping shaft for mounting on measuring stands, measuring probe wrench with case


Brand: ATORN
Length measuring range: 0,2 mm
Scale value: 0,001 mm
Measurement force: 0,15 N
Length of measuring sensor from centre of ball: 12,8 mm
Material of measuring ball: Carbide
Ball diameter: 2 mm
Pivot range of measuring sensor: 240 Degree
Diameter: 40 mm
Connection thread: M1.6
Calibration Group: L
DIN: 2270

ATORN-No.: 30390022

EAN no.: 4050293187427
