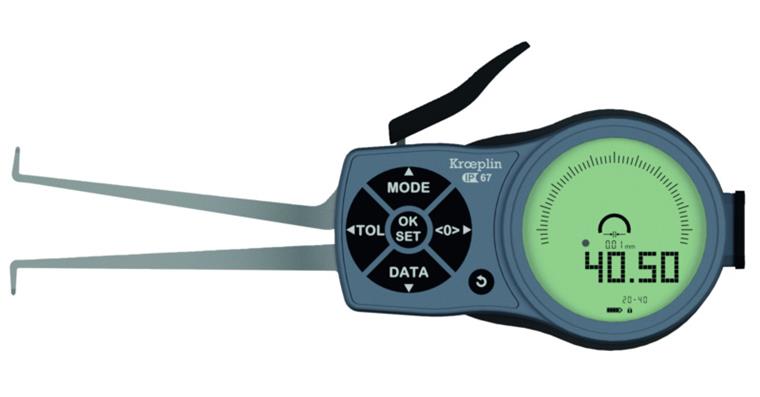

Digital internal quick probe deg. of protect. IP 67 type L220 MR 20-40 mm

Versions

Item no: 1033439 204

Online price:

Catalogue price: You save:

Available in 11-13 working days.

Min. order quantity: 1

Application
For direct measurement of bores, recesses and internal grooves in hard-to-reach places.

Execution

Internal quick probes with analogue and digital display
Adjustable digit increment: 0.001/0.002/0.005/0.01/0.02/0.05 mm
Application-specific measurement programmes and measuring contacts
Absolute and relative measurement programme
Red/green display for tolerance measurements
Switching from mm to inches
Independent battery operation

Delivery
1x measuring gauge
1x cardboard box
1x battery
Factory test certificate
Operating instructions

Notes
Devices with long probe arms deliverable on request.
For replacement batteries, see art. no. 1039900 304.
For connection cables, see art. no. 1035200 307-308.
Wireless interface (Bluetooth) deliverable on request.

Brand: KROEPLIN
Calibration Group: Q
Min./max. length measuring range: 20.0-40.0 mm
Min./max. measurement force: 1.1-1.6 N
Measuring arrangement: 4
Measuring depth: 85 mm
Type: L220
Error limit: 0,03 mm
IP protection class: IP 67
Display: Digital
Measuring contact length movable: 7,3 mm
Measuring contact length fixed: 7,3 mm
Data transmission type: Cable
Max. length measuring range: 40,0 mm
Min. length measuring range: 20,0 mm
Digit increment: 0,01 mm
Max. measurement force: 1,6 N
Min. measuring force: 1,1 N
Repetition limit: 0,01 mm

Manufacturer part no.: L220
