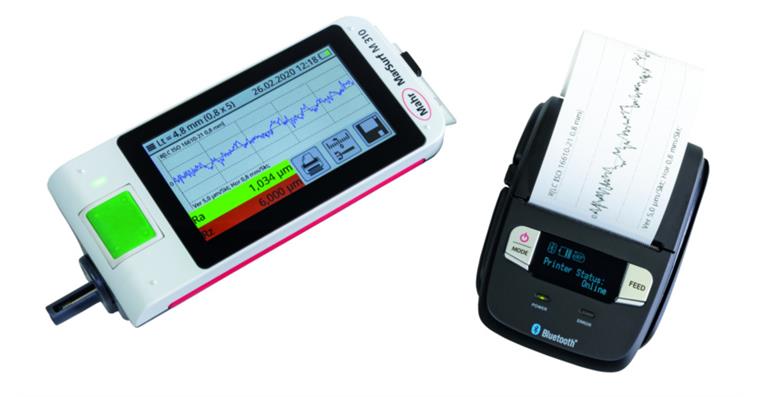

Rauheitsmessgerät M 310 mit Drucker 2 µm

Rauheitsmessgerät M 310 mit Drucker 2 µm

Rauheitsmessgerät M 310 mit Drucker 2 µm
Item no: 1033932 503

Online price:

Available in 6-8 working days.

Application
Compact, mobile roughness measuring device for standardised roughness measurement in production and in measuring rooms.

Execution
  • Large, illuminated, rotatable 4.3-inch TFT touch display
  • Removable feeding device
  • Integrated calibration standard (removable)
  • Calibration function: dynamic, Ra, Rz and RSm
  • Data backup as TXT, X3P and PDF file
  • Start button is also the home button for direct access to the home screen
  • Gaussian filter in accordance with ISO 16610-21 (previously ISO 11562)
  • Special filter in accordance with DIN EN ISO 13565-1
    • ls filter in accordance with DIN EN ISO 3274 (can be deactivated)

    • Internal memory, expandable with microSD card

    • 16 available languages

    • Switchable between µm/µinch
  • USB interface, MarConnect, microSD card
  • Measurements transferred via wireless or cable data connection

Advantage
  • Simple and intuitive operation: as easy as using a smartphone
  • Automatic function for standardised selection of filter and scanning path
  • Including Bluetooth printer
  • Can be upgraded to the new roughness standard DIN ISO 21920 with a free software update


Brand: MAHR
Type: 2 µm Tastspitze + Drucker
Sensor tip: 2 µm
Surface roughness measuring range: 350 µm
Surface roughness scanning path: 1,5 mm | 4,8 mm | 15 mm
Threshold wave length: 0.25 mm | 0.8 mm | 2.5 mm
Measurement profile memory (number of single readings): 500000 PCS
Measurement profile memory (number of profiles): 3900 PCS
Measurement force: 0,75 mN
Housing length: 160 mm
Housing width: 77 mm
Probe system: Runner probe system
IP protection type, equipment housing: IP 40
Parameters: Rvk | Rx | Rz | VO | A1 | A2 | AR | CF | CL | CR | MR1 | MR2 | R | R3z | Rpc | Rsk | Rsm | Ra | Rk | Rmax | Rmr | Rp | Rpk | Rq | Rt

Manufacturer part no.: 6910267

EAN no.: 4059192064587

Product Datasheet
