testo 417 digital impeller anemometer with measuring funnels and straightener

testo 417 digital impeller anemometer with measuring funnels and straightener

testo 417 digital impeller anemometer with measuring funnels and straightener
Item no: 1033990 105

Online price:

Available in 6-8 working days.

Application
For simple, fast and precise measurement of flow velocity, volume flow and temperature in ventilation ducts in air-conditioning and ventilation systems

Execution
  • Volume flow measuring range:
    • 0 to +99,999 m³/h

    • 0 to +440 m³/h (testo 417 in conjunction with funnel set [0563 4170])

    • 0.1 to +200 m³/h, preferably 0.1 to 100 m³/h (testo 417 in conjunction with funnel and straightener [0554 4172])
  • Volume flow resolution:
    • 0.1 m³/h (0 to +100)

    • 1 m³/h (remaining measuring range)
  • Flow impeller accuracy:
    • ±(0.1 m/s + 1.5 % of measured value)
  • For simple, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
  • Efficient adjustment of controlled domestic ventilation systems and rapid documentation with the testo Smart app
  • Fast in-app configuration, graphic progression display, second screen and measurement data memory in the testo Smart app
  • Time-based and specific averaging

Delivery
  • testo 417 - 100 mm impeller anemometer with app connectivity

  • Measuring funnel for poppet valves

  • Measuring funnel for ventilation grilles

  • Straightener

  • Transport bag

  • Calibration log

  • 3 x AA batteries



Brand: TESTO
Type: testo 417
Min./max. current of measuring range: 0.3-20 m/s
Digit increment, current: 0,01 m/s
Min./max. working temperature: -20 to 50 °C
Max. current of measuring range: 20 m/s
Max. working temperature: 50 °C
Min. current of measuring range: 0,3 m/s
Min. working temperature: -20 °C
Battery designation: 1.5 V Mignon AA
Digit increment (measuring instrument for temperature): 0,1 °C
Height: 45 mm
IP protection class: IP 40
Length: 236 mm
Max. temperature measuring range: 50 °C
Min. temperature measuring range: 0 °C
Min./max. temperature measuring range: 0 to 50 °C
Width: 108 mm

Manufacturer part no.: 0563 2417

EAN no.: 4029547025822

Product Datasheet
Keywords: Strömungsmessgerät,Anemometer,

You might also be interested in this

  • Thermo-Anemometer testo 405
    145,04 €
  • testo 417 digital impeller anemometer with measuring funnels
  •
    testo 417 digital impeller anemometer dia. 100 mm with app connection
    389,06 €
  • Vane kit 100 mm testo 440 with Bluetooth
    740,88 €

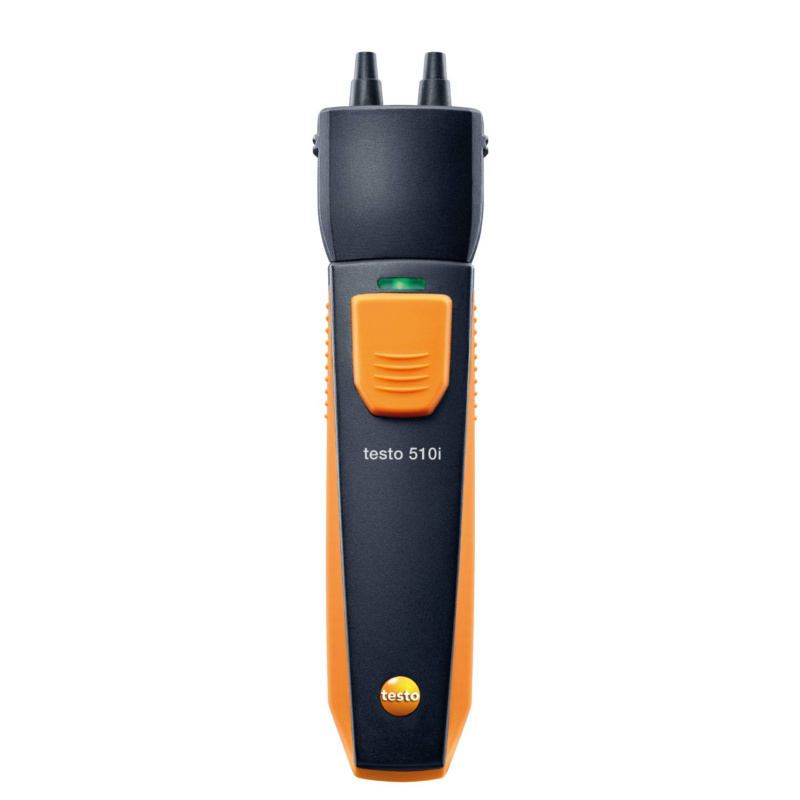

  • Differenzdruck-Messgerät Typ 510i mit Smartphone-Bedienung MB -150 bis 150 hPa
  •
