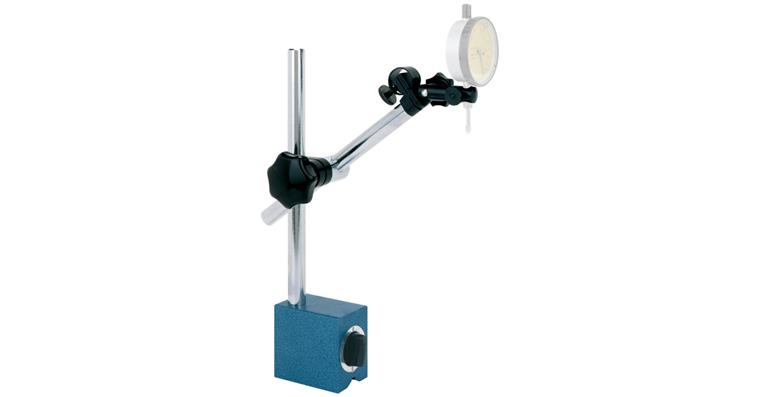

Magnetic measuring stand with rotary switch column dia. 16 mm height=285 mm

Magnetic measuring stand with rotary switch column dia. 16 mm height=285 mm

Magnetic measuring stand with rotary switch column dia. 16 mm height=285 mm
Item no: 1034015 101

Online price:

Available for immediate delivery

Application
Ideal for use with lever gauge probes and small dial gauges.

Execution
  • With high adhesive force
  • Can be switched on and off by rotary switch
  • V-shaped recess in the base
  • Transverse arm with joint and fine adjustment of the dial gauge
  • For dial gauges with shank dia. 8 mm (h 6)
  • Column and transverse arm chrome-plated

Delivery
Without dial gauge

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: LIZZARD
Overall height: 285 mm
Overhang: 180 mm
Column diameter: 16 mm
Adherence strength: 600 N
Base size: 70 x 46 x 65 mm
Measuring arm diameter: 16 mm
Base height: 65 mm
Base width: 46 mm
Foot length: 70 mm

EAN no.: 4024496081776

Product Datasheet
