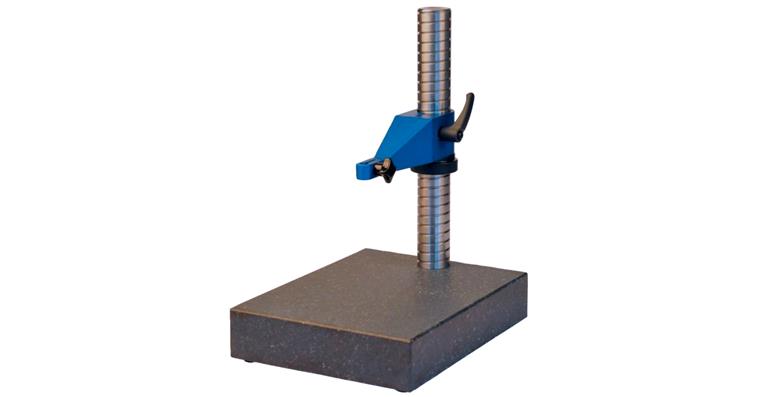

Hard stone precision meas. table w rigid transverse arm meas. height 225 mm

Hard stone precision meas. table w rigid transverse arm meas. height 225 mm

Hard stone precision meas. table w rigid transverse arm meas. height 225 mm
Item no: 1034624 101

Online price:

Available in 8-10 working days.

Application
For dial gauges with shank dia. 8 mm (h7)

Execution
  • With rigid transverse arm
  • Tabletop made of dense, fine-grained natural black hard stone of the highest quality (lapped)
  • The stone is completely free of inclusions
  • Robust chrome column dia. 35 mm
  • Height adjustment and locking on the column, which is equipped with a thread and an adjusting nut (ball-bearing slide)
  • Flatness of the measuring table in accordance with DIN 876/00
  • Measuring surfaces diamond lapped

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank.

Brand: HHW
Overall height: 330 mm
Max. measurement height: 225 mm
Overhang: 110 mm
Measuring table size: 250 x 200 x 50 mm
Adapter diameter: 8 mm
Column diameter: 35 mm
Degree of accuracy: 00 - Pinpoint accuracy
Measuring table height: 50 mm
Measuring table length: 250 mm
Measuring table width: 200 mm
Material of base plate: Hard stone

EAN no.: 4024496081905

Product Datasheet
