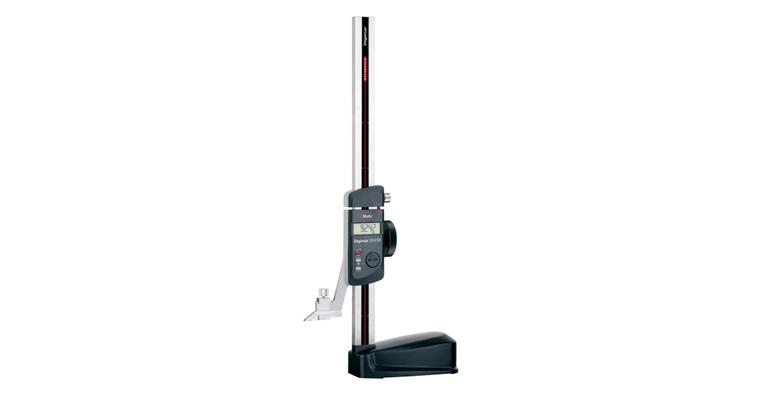

Height measuring and marking devices Digimar 814 SR MR 600 mm reading 0.01 mm

Height measuring and marking devices Digimar 814 SR MR 600 mm reading 0.01 mm

Height measuring and marking devices Digimar 814 SR MR 600 mm reading 0.01 mm
Item no: 1035030 102

Online price:

Still in stock: 2

Application
For marking off and marking workpieces and for measuring heights and distances.

Execution
  • RESET function (setting the display to zero)
  • PRESET function (measurement presetting)
  • Traverse rate 1.5 m/s (60 inches/s)
  • mm/inch switching
  • Reference lock/unlock function (keypad lock)
  • Fine adjustment
  • ABS function (switching from relative to absolute measurement)
  • High-contrast 12 mm high LCD display
  • MarConnect: data output, optional: USB, Opto RS232C, Digimatic/DATA function (in conjunction with data connection cable)
  • Accuracy according to factory standard

Delivery
1x height gauge
1x scribing tip
1x battery (CR 2032)
1x cardboard box
Operating instructions

Notes
For connection cables, see art. nos. 1035200 404-406
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-600 mm
Digit increment: 0,01 mm
Error limit: 50 µm
Base length x base width: 180 x 62 mm
Digit height: 12 mm
Fine adjustment: Yes
Data transmission type: Cable | Wireless
Interface: USB 2.0 type A | Digimatic | RS232 | Integrated Wireless
Functions: ABS function | Auto-On/Auto-Off | Preset function | Reset (Zeroing the display) | With mm / inch switching | Lock-function (Keybord lock) | Fine adjustment | Data (Data transfer)
Other standard: Company standard
Calibration Group: M
Base width: 62 mm
Display: Digital
Foot length: 180 mm

Manufacturer part no.: 4426101

EAN no.: 4059192016814

Product Datasheet
