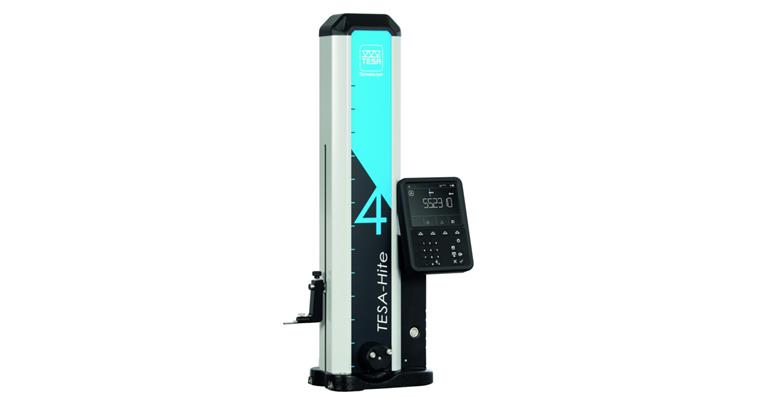

TESA TECHNOLOGY - Digital height measuring device TESA-HITE 400

Application
For measuring external, internal, height, depth and distance measurements, parallelism deviations and inside and outside diameter using the QuickCenter dynamic function.

Execution

Opto µ measurement system, IP55
Modern control panel
Fine adjustment system
Suitable for workshop use
IP 65 control panel
Context-based help
Backlit colour screen
Quick measurements
Quick reversal point search with QuickCenter dynamic technology
4 different display settings
- Height, surface or reversal point measurements
- Bore, shank, shaft, web measurement
- Min, Max, Delta (parallelism) measurements
- Distance and centre point calculation
- mm/inch switching
- Preset function - TLC interface (cable or Bluetooth)
- Data can be sent manually or automatically
- Continuous display of the current position possible
- Large digit size of 21 mm
- Operating keys with click feedback
- Brief training period
- Free SCS certificate

Advantage

Integrierte QUICKCENTER DYNAMIC Technologie zum schnellen und effizienten Bestimmen eines Umkehrpunktes
Oberfläche benutzerdefiniert anpassbar
Kontexthilfe, wodurch komplizierte Verwendung sowie schlechte Ergebnisse vermieden werden
Lange Autonomie (60h) um häufiges Aufladen zu vermeiden
Kostenloses SCS-Zertifikat, zur Vermeidung jeglicher Mehrkosten für erneute Zertifizierung des Geräts nach dem Kauf

Delivery
1x height measuring instrument incl. control panel
1x standard test indicator shank
1x standard indicator contact point with carbide ball dia. 5 mm
1x reference piece
Power supply and cable
SCS certificate
Declaration of conformity
Quick start guide
Operating instructions on USB stick

Notes
Connecting cable, see art. no. 1035200 315-316.
For wireless data transmission, see art. no. 1035200 501-503.

Brand: TESA TECHNOLOGY
Calibration Group: M
Type: Tesa-Hite 400
Length measuring range: 415 mm
Min./max. application area with standard gauge slide carrier: 0-570 mm
Digit increment (can be pre-selected): 0.001 mm | 0.005 mm | 0.01 mm
Height gauge error limit: (2.5 + 4 x L) µm (L in m)
Repeat accuracy of drill hole: 2 µm
Repetition accuracy, level: 3 µm
Perpendicularity tolerance (front): 9 µm
Min./max. measurement force: 1.0-2 N
Max. battery operating time: 60 h
Data transmission type: Cable | Bluetooth
With air cushion equipment: Yes
Weight: 25 kg
Max. application area with standard gauge slide carrier: 570 mm
Max. measurement force: 2 N
Measurement force: 1,5 N
Min. application area with standard gauge slide carrier: 0 mm
Min. measuring force: 1,0 N
