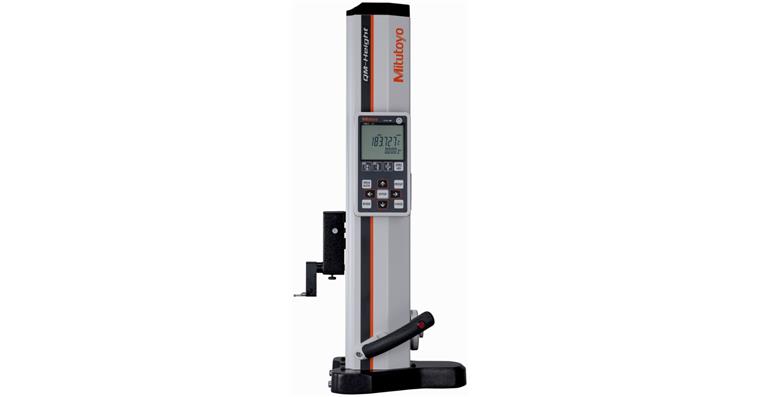

Digitales Höhenmessgerät 0-350 mm Luftkissen QM-Height

Digitales Höhenmessgerät 0-350 mm Luftkissen QM-Height

Digitales Höhenmessgerät 0-350 mm Luftkissen QM-Height
Item no: 1035094 201

Online price:

Available in 11-13 working days.

Application
For measuring external, internal, height, depth and distance dimensions, as well as diameters and reversal points in bores and shafts.

Execution
  • High-precision ABSOLUTE linear scale for position recording
  • Support when running previously 'learnt' parts programmes
  • Single button press for immediate access to frequently used measurement tasks such as inside/outside diameter and increment
  • GO/±NG assessment after setting the upper and lower tolerance
  • Display permanently mounted on housing for convenient operation
  • Measurement function: Height, diameter, increment, Max/Min/TIR (Max-Min), tolerance, preset, data storage
  • Manual traverse method

Delivery
1x height measuring instrument
1x setting block
1x ball probe
Batteries


Brand: MITUTOYO
Calibration Group: M
Type: QM-Height 350
Length measuring range: 350 mm
Min./max. application area with standard gauge slide carrier: 0-350 mm
Digit increment (can be pre-selected): 0.001 mm | 0.005 mm
Perpendicularity tolerance (front): 7 µm
Max. battery operating time: 90 h
Data transmission type: Cable | Wireless
With air cushion equipment: Yes
Weight: 29 kg
Max. application area with standard gauge slide carrier: 350 mm
Measurement force: 1,5 N
Min. application area with standard gauge slide carrier: 0 mm

Manufacturer part no.: 518-244

EAN no.: 4946368760605

Product Datasheet
