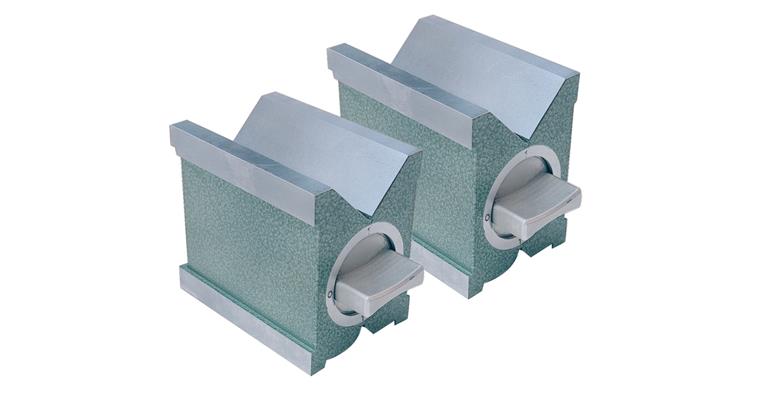

Magnetic meas. and clamping prism accuracy 0.004 mm hardened LxWxH 100x70x96 mm

Magnetic meas. and clamping prism accuracy 0.004 mm hardened LxWxH 100x70x96 mm

1036341102 Magnetic meas. and clamping prism accuracy 0.004 mm hardened LxWxH 100x70x96 mm
Item no: 1036341 102

Online price:

Still in stock: 6

Application
For checking, marking off and aligning cylindrical parts.

Execution
  • In pairs
  • Measuring surfaces and prism hardened, ground
  • Prism processed with the highest precision, exactly even on all sides, parallel, finely ground to a precise angle
  • With magnet that can be switched off with a rotary switch
  • The face opposite the switch is designed as a magnetic adhesive surface
  • Adhesive force of cylindrical parts in prism approx. 400 N
  • Adhesive force on surface approx. 1800 N

Delivery
In wooden case


Brand: ---
Length x width x height: 100 x 70 x 96 mm
Flatness tolerance: 0,004 mm
Min./max. workpiece diameter: 6-70 mm
Adherence strength: 1800 N
Angle: 90 Degree
Design: Magnetic

EAN no.: 4024496083909
