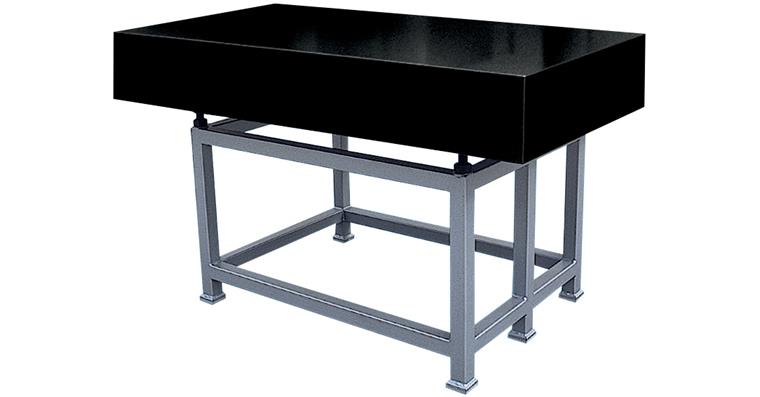

ATORN measuring and control plate 1000x630 mm, acc. 0 with frame

ATORN measuring and control plate 1000x630 mm, acc. 0 with frame

ATORN measuring and control plate 1000x630 mm, acc. 0 with frame
Item no: 1036762 108

Online price:

Available in 6-8 working days.

Application
For use in production and measuring as a basis for precise measuring tasks, e.g. height measuring devices

Execution
  • High-strength hard stone with dense structure, fine pores and high level of homogeneity
  • Measuring surface with finest diamond-lapped finish
  • Outside edges finely ground
  • Edges chamfered for protection against damage
  • Processing and positioning is performed at specific points
  • Section tube base frame

Advantage
  • Distortion-proof
  • Low thermal conductivity

Delivery
Traceable works calibration certificate. DAkkS calibration certificate deliverable on request.


Brand: ATORN
Accuracy class: 0
Length x width x thickness: 1000 x 630 x 100 mm
Weight: 203 kg
Flatness tolerance: 8 µm
Battery designation: 0 - not applicable

ATORN-No.: 30410003

EAN no.: 4050293157147

Product Datasheet
