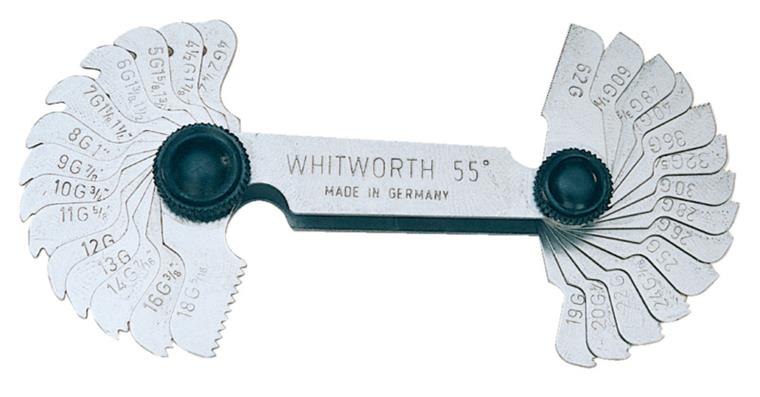

Thread gauge Whitworth thread flank angle 55° 28 pitches 4-62 thread/inch

Thread gauge Whitworth thread flank angle 55° 28 pitches 4-62 thread/inch

Thread gauge Whitworth thread flank angle 55° 28 pitches 4-62 thread/inch
Item no: 1037506 101

Online price:

Available for immediate delivery

Application
For measuring the pitch of female and male threads.

Execution
  • Highly accurate thanks to milled teeth
  • For Whitworth threads, thread angle 55°
  • 28 pitches 4-62 thread/inch: 4 / 4.5 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 16 / 18 / 19 / 20 / 22 / 24 / 25 / 26 / 28 / 30 / 32 / 36 / 40 / 48 / 60 / 62 threads


Brand: LIZZARD
Number of sheets: 28

EAN no.: 4024496236060

Product Datasheet
