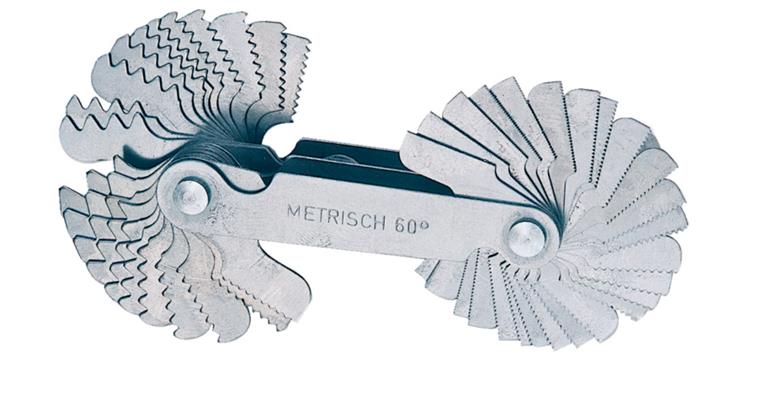

Thr. gauge mtrc 60° 24 pitches 0.25-6 mm + Whitworth 55° 28 pitches 4-62 thrds/inch

Thr. gauge mtrc 60° 24 pitches 0.25-6 mm + Whitworth 55° 28 pitches 4-62 thrds/inch

Thr. gauge mtrc 60° 24 pitches 0.25-6 mm + Whitworth 55° 28 pitches 4-62 thrds/inch
Item no: 1037507 101

Online price:

Available for immediate delivery

Application
For measuring the pitch of female and male threads.

Execution
  • Highly accurate thanks to milled teeth
  • For metric threads
    Flank angle 60°
    24 pitches 0.25-6 mm: 0.25 / 0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 / 0.7 / 0.75 / 0.8 / 0.9 / 1.0 / 1.25 / 1.5 / 1.75 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 mm
  • For Whitworth threads
    Flank angle 55°
    28 pitches 4-62 thread/inch: 4 / 4.5 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 16 / 18 / 19 / 20 / 22 / 24 / 25 / 26 / 28 / 30 / 32 / 36 / 40 / 48 / 60 / 62 threads


Brand: LIZZARD
Number of sheets: 52

EAN no.: 4024496236077

Product Datasheet
