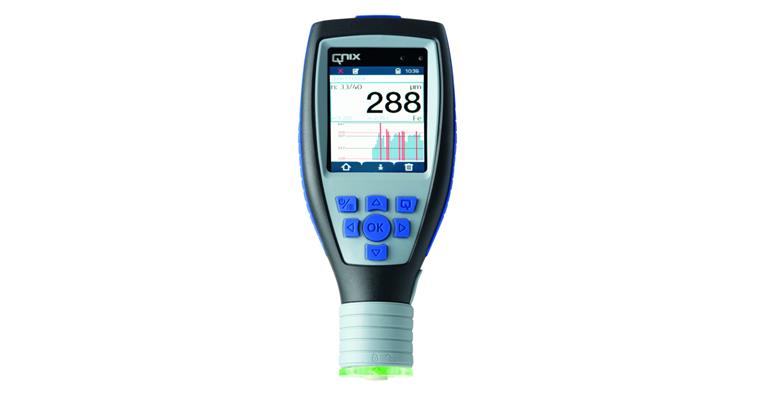

QNix 9500 Premium+ layer thickness gauge external probe Dual Fe/NFe 1.2 mm

QNix 9500 Premium+ layer thickness gauge external probe Dual Fe/NFe 1.2 mm

QNix 9500 Premium+ layer thickness gauge external probe Dual Fe/NFe 1.2 mm
Item no: 1039153 401

Online price:

Available in 29-31 working days.

Application
Precise layer thickness measurement for heavy-duty corrosion protection, industrial painting, and vehicle evaluation.

Execution
  • High accuracy and repeatability over the entire measuring range.
  • Temperature compensation directly in the sensor
  • Glass fibre reinforced, five piece housing with
    IP65 dust and splash protection
  • Bright IPS LCD, 2 inch, colour, 350 cd/m2, viewing angle 70°
  • Handheld device suitable for Fe, NFe and dual probes
  • Integrated interchangeable probe and cable probe
    available in one unit
  • Increased operational readiness through rapid
    probe replacement
  • Intuitive menu navigation for handheld device and software, three clicks to access report
  • Preconfigured norms and standards
  • Freely assignable button for individual quick access

Delivery
1x handheld QNix® 9500
QN9 PC software
Fe and NFe reference plates with two test films
Test certificate (only with integrated measuring probe)
Operating instructions
USB cable
2x batteries (AA)
Plastic case

Notes
Further model variants, probe types and accessories on request.

Brand: QNIX
Probe design: FNF
Test probe: Integrated
Min./max. layer thickness of measuring range: 0-1200 µm
Data transmission type: USB
Max. accuracy (+/-) in %: 3 %
Max. layer thickness of measuring range: 1200 µm
Min. layer thickness of measuring range: 0 µm
Battery designation: 1.2 V Mignon AA
Display: LCD
Gross weight: 175 g
Length: 155 mm
Max. operating temperature: 70 °C
Min. operating temperature: -20 °C
Min./max. operating temperature: -20 to 70 °C
Number of rechargeable batteries/batteries: 2 PCS
Width: 65 mm

Manufacturer part no.: 12910008AA

Product Datasheet
