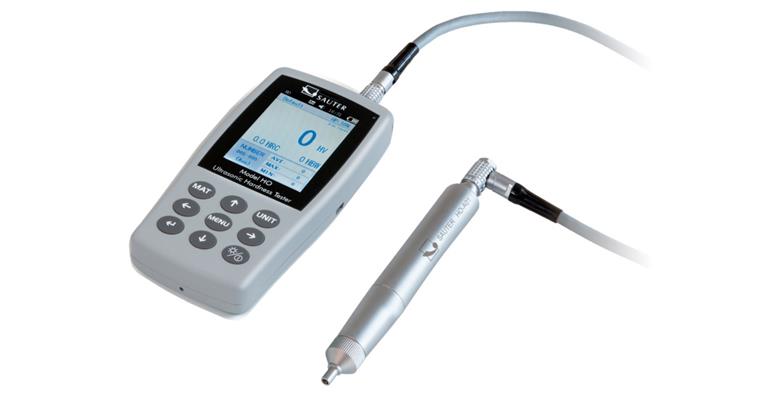

Mobile ultrasonic hardness tester HO 2K hardness scale HV 2

Mobile ultrasonic hardness tester HO 2K hardness scale HV 2

Mobile ultrasonic hardness tester HO 2K hardness scale HV 2
Item no: 1039190 102

Online price:

Available in 8-9 working days.

Application
Ideal for portable hardness testing where the emphasis is on fast and precise results.

Execution
  • Mini statistics function: displays the measurement result, the number of measurements, the maximum and minimum values and the average value and standard deviation
  • Measurement data memory: saves up to 1000 measured value groups of 20 individual values
  • Precision: +/- 3 HV, +/- 1.5 HR, +/- 3% HB
  • Measuring time: adjustable, from 1 to 5 seconds
  • Display units: HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N, HR30N, HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB
  • Principle: The HO measures using a Vickers diamond tip, which is pressed onto the test object with a defined force. Then the tip is moved in high-frequency ultrasonic vibrations. The hardness is derived from the damping
  • Art. no. 1039190 101 Surface roughness of test specimen RA <3.2 µm
  • Art. no. 1039190 102 Surface roughness of test specimen RA <5 µm

Delivery
1x display unit
1x UCI sensor unit
Connection cable
Transport case
Software for transferring the stored data to the PC
Hardness reference plate

Notes
ISO calibration certificate and accessories deliverable on request.

Brand: SAUTER
Testing method: HV 2
Min./max. HRC measuring range: 20.3-68 HRC
Type: HO 2K
Min./max. tensile strength: 255-2180 N/mm²
Min./max. HB measuring range: 76-618 HB
Min./max. HRB measuring range: 41-100 HRB
Min./max. HV measuring range: 80-1599 HV
Hardness accuracy: HV 3% | HRC 1.5%
Memory (measurements): 1000
Vickers pyramid: 1
Min./max. working temperature: -10 to +40 °C
Display type: LCD
Backlight: Yes
Data transmission type: USB
Housing dimensions (LxWxH): 28 x 160 x 83 mm
Number of rechargeable batteries/batteries: 1
Battery designation: 0 - not applicable
Height: 28 mm
Manual probe: Includes
Max. HB measuring range: 618 HB
Max. HRB measuring range: 100 HRB
Max. HRC measuring range: 68 HRC
Max. HV measuring range: 1599 HV
Max. tensile strength: 2180 N/mm²
Max. working temperature: +40 °C
Min. HB measuring range: 76 HB
Min. HRB measuring range: 41 HRB
Min. HRC measuring range: 20,3 HRC
Min. HV measuring range: 80 HV
Min. tensile strength: 255 N/mm²
Min. working temperature: -10 °C
Width: 160 mm

Manufacturer part no.: HO 2K

EAN no.: 4045761184145

Product Datasheet
