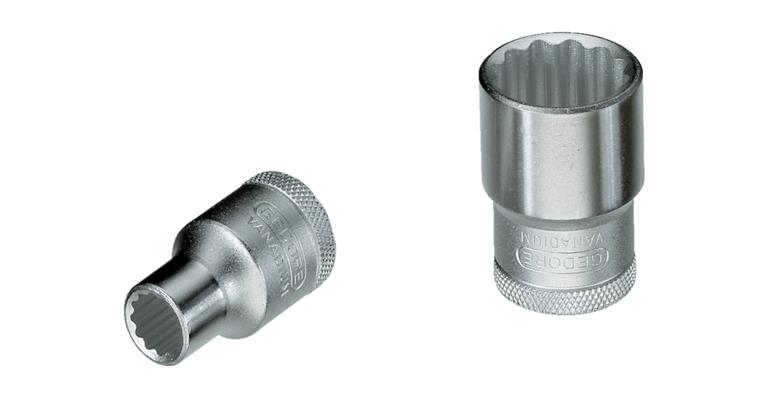

GEDORE socket wrench insert 14 mm 3/8' DIN 3124 bi-hexagon

GEDORE socket wrench insert 14 mm 3/8' DIN 3124 bi-hexagon

GEDORE socket wrench insert 14 mm 3/8' DIN 3124 bi-hexagon
Item no: 1051229 106

Online price:

Available in 5-7 working days.

Application
Socket with bi-hexagon and 3/8 inch square drive.

Execution
  • With UD profile, chrome-plated, drop-forged.
  • The open-end, box-end and socket wrenches all have a profile that increases the force application areas on the screw heads.
  • A tangential force is transmitted to the edges of the screw heads and nuts.
  • Can also be used for screws outside the tolerance range
  • Protects the screw heads - force is applied to the surface to prevent edge crimping
  • Larger contact surface for maximum power transmission
  • Also loosens damaged screw heads
  • Knurled

Advantage
  • Force applied to the edges with optimum load distribution prevents the edges of nuts and bolts from being crushed
  • Good grip thanks to knurling


Brand: GEDORE
Tip type: Double hexagon head
Width across flats: 14 mm
Drive: 3/8 inch
Tip profile type: UD profile
Length: 28 mm
Outer diameter: 19,7 mm
Surface: Chrome plated
Material: Chrome-vanadium steel
DIN: 3124
Internal drive: HS3/8 inch

Manufacturer part no.: D30-14

EAN no.: 4010886623091

Product Datasheet
