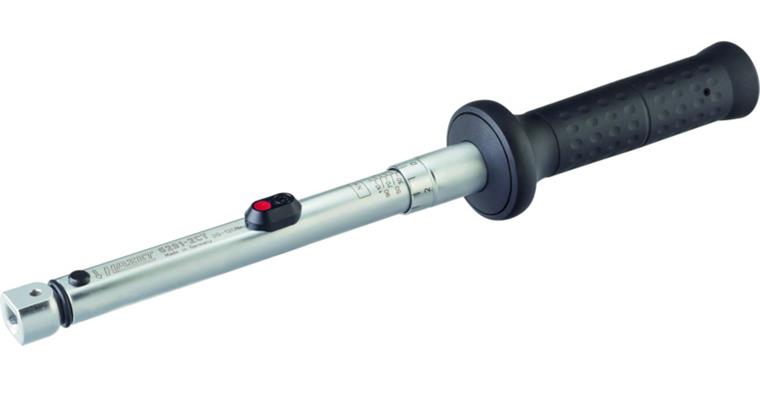

Torque wrench 9x12 mm mount setting range 20-120 Nm

Versions

Item no: 1051760 203

Online price:

Catalogue price: You save:

Available in 5-7 working days.

Min. order quantity: 1

Application
For holding insert tools. Can be used for right-hand and left-hand threads by twisting the plug-in tool.

Execution

Mise en graduation micrométrique en tournant le manche
Especially slim design thanks to spring-loaded pull sleeve for locking the setting values
Torque adjustment by twisting the handle
Perceptible (quick-release)/audible (click sound)

Advantage
Long-term endurance tests on HAZET torque wrenches in the 5000 and 6000 series have shown that it is no longer necessary to turn back to the smallest scale value

Delivery
With factory calibration certificate and serial number

Brand: HAZET
Min./max. torque measuring range: 20-120 Nm
Scale value: 1
Insert shank square: 9 x 12 mm
Length: 389 mm
Error limit (%): 2
With scale: Yes
Max. torque measuring range: 120 Nm
Min. torque measuring range: 20 Nm
Calibration certificate: Works calibration certificate
Type: 6291-2CT

Manufacturer part no.: 4000896026104

EAN no.: 4000896026104

Product Datasheet
