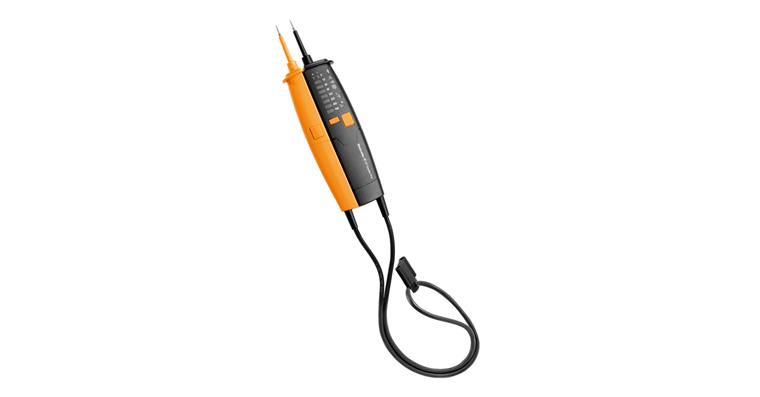

Two-pole voltage tester 6-690 V AC/DC VT Combi Pro continuity tester

Two-pole voltage tester 6-690 V AC/DC VT Combi Pro continuity tester

Two-pole voltage tester 6-690 V AC/DC VT Combi Pro continuity tester
Item no: 1062372 101

Online price:

Still in stock: 4

Application
For testing voltage and continuity in line with regulations

Execution
  • One-handed operation
  • LED display for voltage and polarity
  • Probe tip protection
  • Voltage display 12-690 V AC/DC
    • Visual/audible continuity test

    • With switchable load

    • Phase sequence indicator

    • RCD test/load function

    • Probe lighting

    • Magnetic latch

    • Screw-on probe extension

    • Probe tip cover to shorten the probe tip

Delivery
includes tools for changing batteries


Brand: WEIDMUELLER
Min./max. voltage range DC: 6-690 V/DC
Type: VT Combi Pro
Min./max. voltage range AC: 6-690 V/AC
Display: LED
High voltage resistance: 8 kV
Min./max. frequency: 16 / 400 Hz
Rotating field test: Yes
Phase sequence test: Yes
Polarity testing: Yes
Measurement point lighting: Yes
IP protection class: IP 65
Length x width x height: 264 x 67 x 33 mm
Weight: 290 g
Overvoltage protection category: CAT IV/400 V | CAT III/600 V
Min./max. working temperature: -15 to 45 °C
EN standard: 61243-3
Height: 33 mm
Length: 264 mm
Max. frequency: 400 Hz
Min. frequency: 16 Hz
Width: 67 mm
Diode testing: No

Manufacturer part no.: 480076

EAN no.: 4032248405749

Product Datasheet
