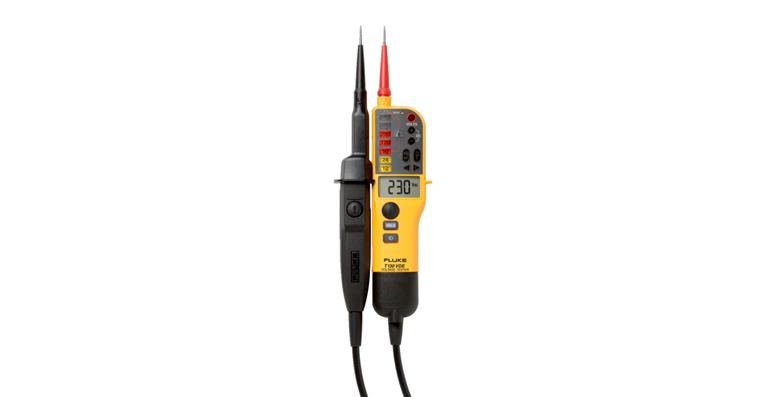

T130 VDE two-pole voltage tester 6-690 volts continuity tester up to 400 kohms

T130 VDE two-pole voltage tester 6-690 volts continuity tester up to 400 kohms

T130 VDE two-pole voltage tester 6-690 volts continuity tester up to 400 kohms
Item no: 1062384 101

Online price:

Still in stock: 5

Application
Four detection methods for AC/DC voltages
1. Clear display of status and measured values via LEDs
2. Measured value displayed on bright digital display
3. Continuity test with audible signal
4. Vibration sensor provides tactile feedback

Execution
  • Measured value display with backlight
  • Battery voltage display
  • Voltage detection even with empty batteries
  • Improved mounting of measuring tips for safe storage
  • Rotary field indicator for three-phase systems
  • RCD testing function
  • Measured value can be held on the display
  • Built-in electric torch
  • Sliding probe tips
  • Protection for probe tips and accessories during storage
    • Detection of damaged measuring leads with WearGuard™ insulation

    • Approved in accordance with IEC 61243-3, VDE 0682 Part 401

Advantage
  • A load can be engaged using the secondary button in order to pull a higher current from the circuit being tested and trigger residual current devices (RCDs)
  • Rapid determination of current-carrying conductors by means of single-pole phase test
  • The guard allows you to always keep one hand free when opening safety power outlets

Delivery
2 x AAA (LR03) batteries
2 x GS38 test tip guards
2 x 4 mm test tip extensions
Operating instructions

Notes
For replacement batteries, see art. no. 1039900 304.

Brand: FLUKE
Min./max. voltage range DC: 6-690 V/DC
Type: T130 VDE
Min./max. voltage range AC: 6-690 V/AC
Display: LCD
Max. continuity test: 400 kOhm
Min./max. frequency: 0 / 400 Hz
Min./max. continuity test: 0-400 kOhm
Rotating field test: No
Polarity testing: Yes
Vibration control system: Yes
Measurement point lighting: Yes
IP protection class: IP 64
Length x width x height: 260 x 70 x 38 mm
Weight: 280 g
Overvoltage protection category: CAT III/690 V | CAT IV/600 V
Height: 38 mm
Length: 260 mm
Max. frequency: 400 Hz
Min. continuity test: 0 kOhm
Min. frequency: 0 Hz
Non-contact test: No
Width: 70 mm
Diode testing: No
Resistance measurement: No

Manufacturer part no.: 4093095

EAN no.: 0095969610506

Product Datasheet
Keywords:

You might also be interested in this

  • Slotted plates sheet steel 450 x 1000 RAL 5010 gentian blue
  •
    T150 VDE two-pole voltage tester 6-690 volts continuity tester up to 400 kohms
  •
    Ear defenders 3M™ Peltor™ Optime™ III with headband
  •
    Half face mask Force 8 large
  •

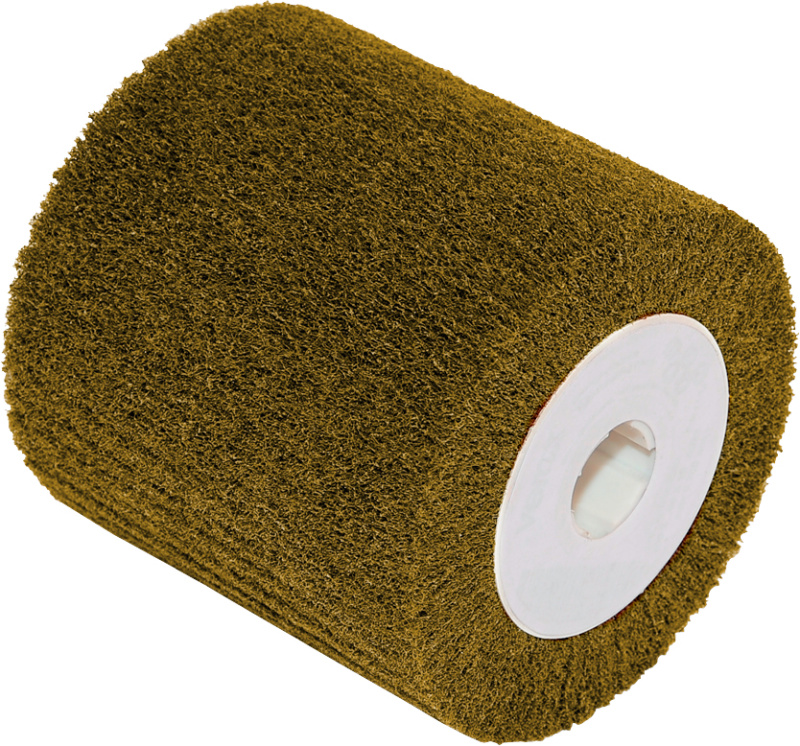

    ATORN non-woven abrasive flap wheel colour, 115x100x19 mm, G180-240, yellow
  •
