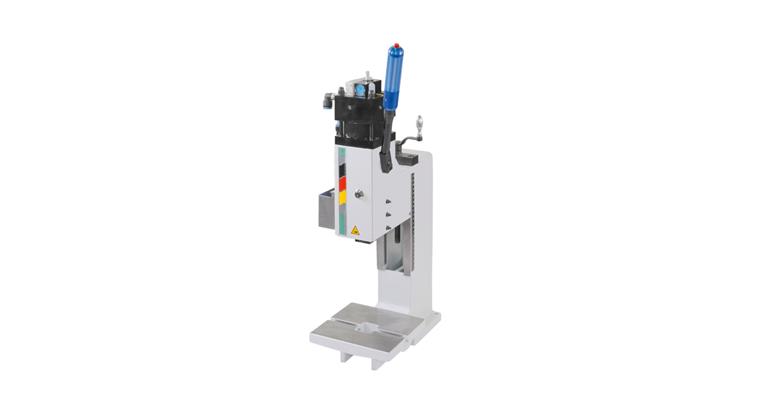

Hand-lever press with air support and defined start - 12 kN

Hand-lever press with air support and defined start - 12 kN

Hand-lever press with air support and defined start - 12 kN
Item no: 1072031 102

Online price:

Availability on demand

Execution
  • The operator uses the hand lever to extend the press slide over a knee joint
  • In this position, the operator can implement a 5.9 mm long pneumatic power stroke by pressing a button or by turning the hand lever slightly
  • The operating pressure is 2 to 7 bar
  • The pneumatic connection line measures 1/4 inch


Brand: ---
Max. compressive force: 12 kN
Max. installation height: 240 mm
Max. stroke length: 46 mm
Min. installation height: 73 mm
Min./max. installation height: 73-240 mm
Overall height: 729 mm
Overhang: 120 mm
Table length: 200 mm
Table width: 169 mm
Type: 12 kN HKP/L DS

EAN no.: 4024496107063

Product Datasheet
