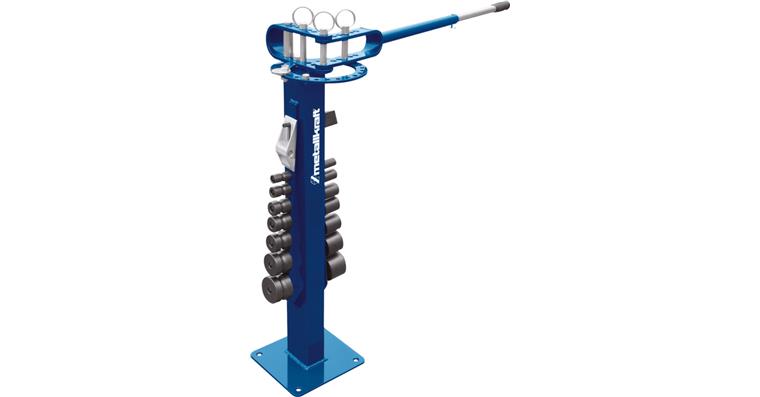

Universal bending device UB 10 G 3/4 round bending 10x50

Item no: 1072121 101

Online price:

Catalogue price: You save:

Available in 8-10 working days.

Min. order quantity: 1

Application
Universal bender for bending flat or square material to form angular, rounded or spiralling bends.
Cold bending up to an angle of 180°.

Execution

Extending handle for greater leverage
Screw-on stand for a secure hold
Removable bending unit, with optional gripping plate, can also be used on vice
Quality: Made in Europe

Advantage

Adjustable bending angle for high repeat accuracy
With additional option UB 11, bending in spirals also possible
Easy to transport, and ideal for workshops, assembly tasks and use in service trolleys

Delivery
2 bending rollers each:
- for bending radius 24 mm
- for bending radius 30 mm
- for bending radius 37 mm
- for bending radius 43 mm
- for bending radius 49 mm
- for bending radius 62 mm
- for bending radius 75 mm

Brand: METALLKRAFT
Length x width x height: 325 x 1100 x 1010 mm
Weight: 32 kg

Manufacturer part no.: 3776010

EAN no.: 4036351028338

Product Datasheet
