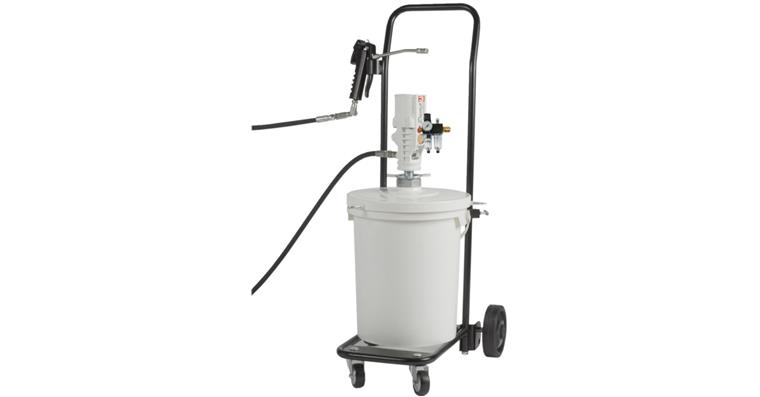

Pneumatic lubrication device PM 15 mobile w. hose 4m lubr. pressure max. 400bar

Pneumatic lubrication device PM 15 mobile w. hose 4m lubr. pressure max. 400bar

Pneumatic lubrication device PM 15 mobile w. hose 4m lubr. pressure max. 400bar
Item no: 1077605 101

Online price:

Still in stock: 2

Application
Suitable for oils and greases up to consistency class 2, including organic greases (multi-purpose greases).

Execution
  • With safety lubrication hose, 4 m
  • Includes conditioning unit for low-wear operation and drum screw fitting with 2 inch thread
  • Pre-feed system for secure feeding of long-lasting greases
  • High delivery rate through transmission ratio of 1:55, suction connection and safety lubrication hoses with a large inner diameter
  • Grease follower cover for buckets with inner dia. of 260-290 mm
  • Steel dust cover for buckets with outer dia. of 265-310 mm
  • High-pressure lubrication gun with ball bearing-mounted pro-Z joint, exceptionally smooth under pressure
  • Compressed air connection/grease outlet G 1/4 inch, internal thread
  • Trolley


Brand: SAMOA-HALLBAUER
Max. operating pressure: 400 bar
Connection thread: 2 inch | G 1/4 inch
Burst pressure: 1600 bar
Hose length: 4 m
Max. air pressure: 10 bar
Min. air pressure: 3 bar
Min./max. air pressure: 3-10 bar
Type: PM 15 mobile

Manufacturer part no.: 40260

EAN no.: 4024937402603

Product Datasheet
