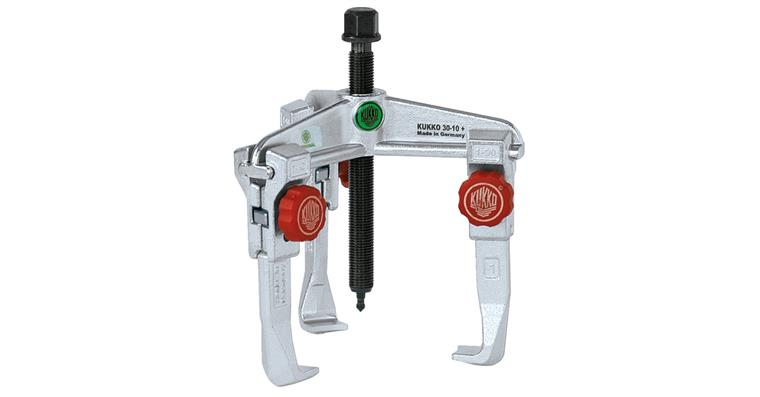

Triple leg universal puller w. quick adjustment sz. 30 clamp. width 350mm D=200

Triple leg universal puller w. quick adjustment sz. 30 clamp. width 350mm D=200

Triple leg universal puller w. quick adjustment sz. 30 clamp. width 350mm D=200
Item no: 1078128 106

Online price:

Available in 13-15 working days.

Application
For universal internal and external extraction of gear wheels, ball bearings, bearings etc.

Execution
  • Strong design, special steel
  • Strong spindle and movable spindle tip
  • Spindle head with collar (anti-slip protection)
  • Sliding, permanently parallel legs and large contact surfaces for gentle extraction

Advantage
  • Even load distribution for a particularly secure hold on the part being extracted
  • Can be used as either an external or internal extractor
  • Quick release and movement of the hooks without a wrench using the manual setting knurl


Brand: KUKKO
Extractor design: Quickly adjustable hook
Max. clamping depth: 200 mm
Max. torque: 250 Nm
Min./max. external clamping width: 50-375 mm
Min./max. internal clamping width: 180-440 mm
Size: 30

Manufacturer part no.: 30-30+

EAN no.: 4021176303333

Product Datasheet
