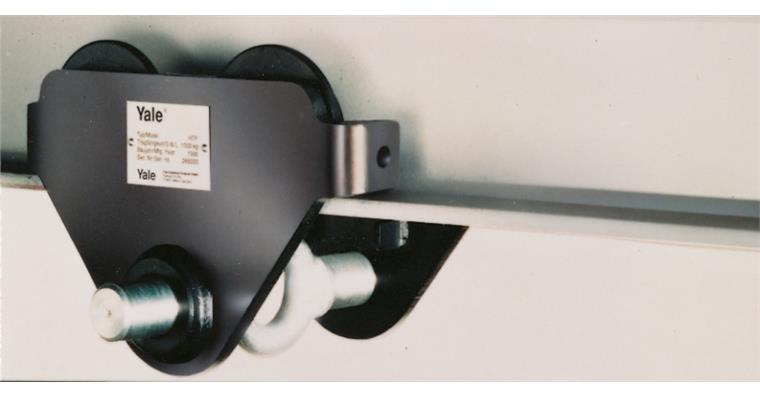

Roller trolley HTP f. beam width 50-220mm, load 1000kg, cornering whl min. 900mm

Roller trolley HTP f. beam width 50-220mm, load 1000kg, cornering whl min. 900mm

Roller trolley HTP f. beam width 50-220mm, load 1000kg, cornering whl min. 900mm
Item no: 1080140 303

Online price:

Still in stock: 5

Execution
  • Roller trolley
  • Compact design with low overall height
  • Can be adjusted to different beam flange widths
  • Optimal running properties due to ball-bearing mounted runners

Notes
All models are also available in explosion-protected design. Larger flange widths deliverable on request.

Brand: YALE
Load-carrying capacity: 1000 kg
Min. flange width: 50 mm
Max. flange width: 220 mm
Min. curve radius: 900 mm
Weight: 17 kg

Manufacturer part no.: N05141274

EAN no.: 4025092054881
