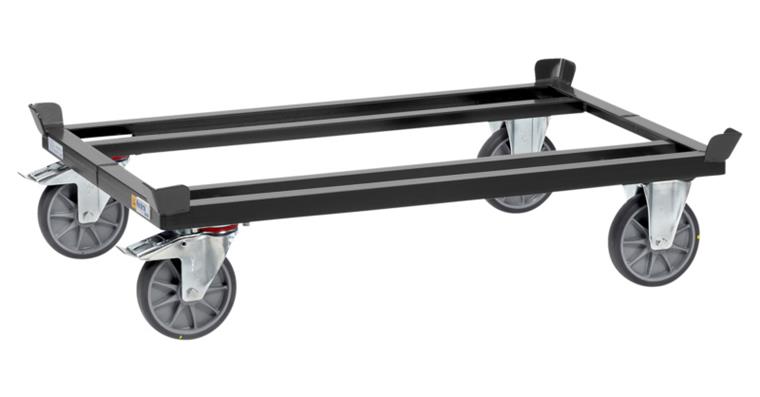

ESD pallet trolley load. 1210x1010mm

ESD pallet trolley load. 1210x1010mm

ESD pallet trolley load. 1210x1010mm
Item no: 1081314 104

Online price:

Availability on demand

Application
For flat pallets and crates.

Execution
  • Robust welded angle steel structure with 4 corner braces, powder-coated
  • 2 swivel castors and 2 fixed castors with TPE ESD tyres, hubs with deep groove ball bearings
  • Swivel castors with locking devices according to European standard EN 1757-3 (safety of platform trolleys)

Advantage
  • very low starting, rolling and swivelling resistance
  • Quiet movement over level surfaces
  • Tyres are non-marking (trackless)


Brand: FETRA
Load-carrying capacity: 750 kg
Length x width x height: 810 x 1210 x 282 mm
Loading surface size: 1210 x 1010 mm
Loading surface height: 282 mm
Material of loading surface: Angle steel
Material of wheel: TPE-ESD
Wheel diameter: 200 mm
With wheel lock: Yes
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
Total stop optional: Yes
Suitable for transporting: Euro pallets
Colour: Slate grey, similar to RAL 7015
Surface: Powder-coated
ESD-capable: Yes
EN standard: 1757-3

Manufacturer part no.: 23802

EAN no.: 4017976238029

Product Datasheet
