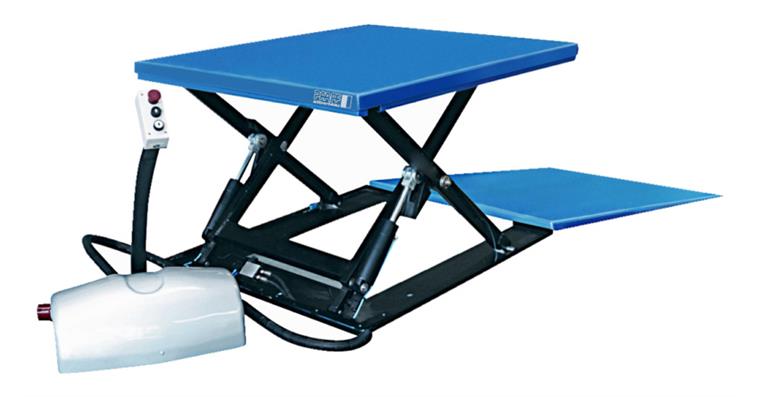

Flat shears lifting table G-shape lifting load 1000 kg lifting height 760 mm

Flat shears lifting table G-shape lifting load 1000 kg lifting height 760 mm

Flat shears lifting table G-shape lifting load 1000 kg lifting height 760 mm
Item no: 1081527 100

Online price:

Availability on demand

Application
For assembly, packaging and maintenance work. Indoor operation. For use on industrial floors, does not require pit installation.

Execution
  • Single-scissor construction for evenly distributed loads
  • Smooth, sheet-steel platform
  • External hydraulic unit with controller
  • Maintenance supports
  • Circumferential contact strip
  • Line-break safety device
  • Lowering brake valve
  • DIN EN 1570-1, EC Machinery Directive 2006/42/EC

Advantage
  • Low overall height
  • Ergonomic workstations
  • Height-adjustable platform


Brand: PFAFF
Max. table height: 760 mm
Min. table height: 82 mm
Load-carrying capacity: 1,0 t
Power rating: 0,75 kW
Shear design: Single
Design: Stationary
Length: 1450 mm
Lift height: 760 mm
Stroke mechanism: Electric
Width: 1140 mm
Platform length: 1450 mm
Platform width: 1140 mm
Weight: 250 kg

Manufacturer part no.: 40047380Q

EAN no.: 4050939066185
