Application
For sanding twist drill bits with dia. 3-13 mm.
With the help of the setting guide, the cutting edges of the drill bit are fixed at a set position within the collet chuck and fed into the grinding apertures in the specified order. The allows the cutting edges to be ground with the least possible rotation of the collet chuck.

Execution

• Easy-to-use sanding device ideal for sanding twist drill bits with dia. 3-13 mm
• Simple operation for precise, economical sanding of twist drill bits with 2 cutting edges
• CBN sanding disc included in the scope of delivery
• Diamond sanding disc available as an accessory
• Complete equipment with ER collets within the machine

Delivery

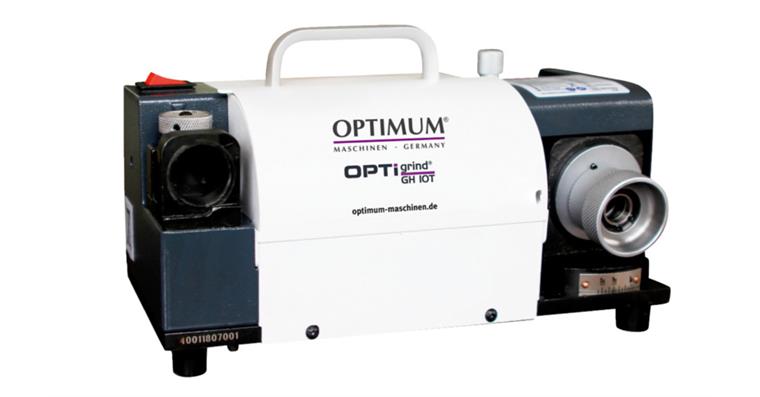

- 1x twist drill bit sander GH10T for dia. 3-30 mm
- 1x CBN sanding disc GH10T, K170-K200
- 11x collet ER 20, dia. 3-13 mm

Notes
For suitable replacement ER 20 collet, see art. no. 1021522.
For replacement CBN sanding discs, see art no. 1090025 302.
For diamond sanding discs, see art no. 1090025 303.
