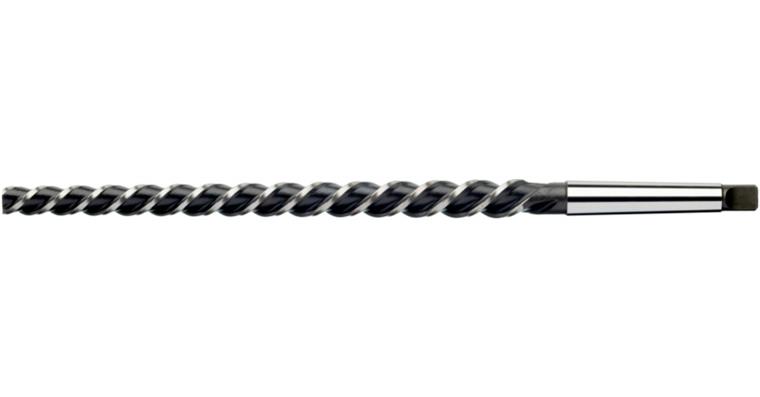

ATORN mach. taper shell reamer HSS T=3, 45°, 12.0mmx315mmx210mm MT DIN2180

ATORN mach. taper shell reamer HSS T=3, 45°, 12.0mmx315mmx210mm MT DIN2180

ATORN mach. taper shell reamer HSS T=3, 45°, 12.0mmx315mmx210mm MT DIN2180
Item no: 1003130 218

Online price:

Still in stock: 8

Application
for cutting tapered fit tolerances 1:50 for taper pins in accordance with DIN 258, DIN EN 22339, 28737, 28736 on conventional machines and NC machines up to 1000 N/mm².

Execution
45° left-hand spiral, 1:50 taper and straight shank with retaining lugs

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Cast metal | Special alloy | Steel | Stainless steel | Non-ferrous metal
Cutting material: HSS
Groove type: Left-hand twist, 45°
Surface: Uncoated
Tool holding device: Morse taper shank
Cutting edge diameter: 12 mm
Min. cutting edge diameter: 11,8 mm
Max. cutting edge diameter: 16 mm
Length: 315 mm
Cutting edge length: 210 mm
Number of cutting edges: 3 PCS
Morse taper size: MK 2
f steel 1000: 0,15 mm/r
DIN: 2180

ATORN-No.: 10042480

EAN no.: 4050293006339

Product Datasheet Datasheet cutting values
